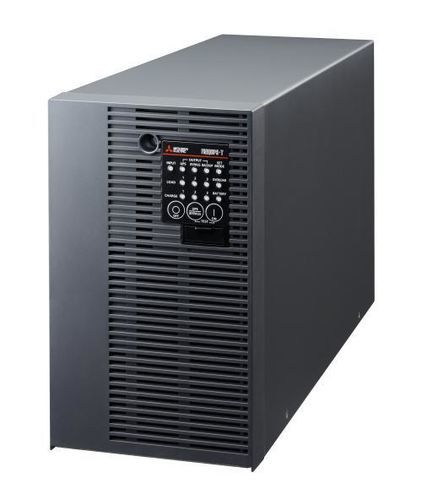

AC UPS FW-T10-0.75K

on-linecompactwith communication system

Basic information
Model: FW-T10-0.75K
Overview: Smallest-class UPS designed for equipment and control panel embedding. Provides total support from selection through operation and replacement.
Standard price: Not specified
Availability: Available

Features
Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared with the FW-S series, improving suitability for equipment and panel integration.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), enabling retrofit replacement of existing units.

Operation

• Event log function visualizes operating status and records what occurred on the UPS.
• Supports reduced site visits and remote monitoring for rapid response to power incidents.
• Saves abnormal waveforms around events: up to 4,000 samples before and after an event, sampled at 0.5 ms intervals. The three most recent datasets can be exported as CSV files.
• CSV files can be exported via a web browser or the Mitsubishi dedicated app "FREQSHIP-Pro".
• Recordable/obtainable items (saved event conditions): input voltage abnormality (overvoltage), overload, output short-circuit, voltage sag, input voltage upper/lower limit monitoring, output current instantaneous value upper/lower monitoring, output current RMS value upper/lower monitoring, output voltage upper/lower monitoring, battery operation start. Settings (operation switching, threshold changes) can be configured from "FREQSHIP-Pro".

Replacement / Life-cycle support

• Enables visualization of remaining life for both the UPS unit and battery, facilitating confirmation of replacement timing and supporting budget planning and predictive maintenance to avoid equipment downtime due to degradation.

Key features / Specifications (main items)

• Model: FW-T10-0.75K
• Smallest-class UPS (for equipment and panel embedding)
• Volume: approx. 40% reduction vs. FW-S series
• Weight: up to approx. 33% reduction vs. FW-S series
• Mounting compatibility: compatible with FW-S series (0.7K/1.0K) mounting brackets (brackets sold separately)
• Event log storage: abnormal waveform sampling — up to 4,000 samples before and after events at 0.5 ms intervals
• Log output: latest 3 datasets exportable as CSV (via web browser or dedicated app "FREQSHIP-Pro")
• Example saved/recordable events: input voltage abnormality, overload, output short-circuit, voltage sag, various upper/lower limit monitoring, battery operation start, etc.
• Operational support: visualization of operation status to improve remote monitoring and maintainability
• Availability: Available
