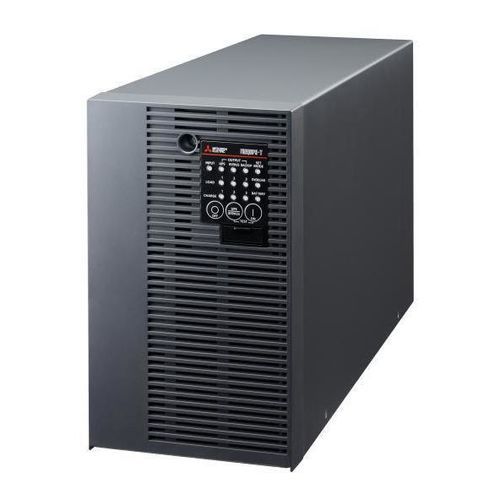

Industrial UPS FW-T10CN-1.0K

on-lineACcompact

Basic information
Model: FW-T10CN-1.0K
Overview: Smallest-class UPS. Ethernet is standard for factory automation (FA) environments.
Standard price: Contact your nearest branch or distributor.
Availability: Available

Features - Selection

• Approximately 40% reduction in volume and up to 33% reduction in weight compared with the FW-S series, improving integration into equipment and control panels.
• Mounting bracket (sold separately) is compatible with FW-S series (0.7K/1.0K), facilitating replacements in existing installations.

Features - Operation

• Ethernet support enables easy addition to existing networks (one UPS can shut down up to 10 PCs maximum).
• Event log function visualizes operating status and incidents, reducing on-site work and facilitating remote monitoring.
• Abnormal waveform recording: samples 4,000 points before and after an event (0.5 ms intervals); the latest three datasets can be exported as CSV.
• CSV export is available via web browser or the dedicated app "FREQSHIP-Pro".

Captured items (saved event conditions)

• Input voltage abnormality (overvoltage)
• Overload abnormality
• Output short circuit
• Voltage sag (momentary dip)
• Upper/lower limit monitoring (input voltage)
• Upper/lower limit monitoring (output current — instantaneous)
• Upper/lower limit monitoring (output current — RMS)
• Upper/lower limit monitoring (output voltage)
• Battery operation start

Features - Replacement

• Visualization of remaining life for both the UPS unit and the battery enables planning for replacement, supporting budget planning and predictive maintenance.

Technical specifications

• Model: FW-T10CN-1.0K
• Category: Uninterruptible Power Supply (UPS), under 5 kVA class
• Ethernet: Standard (network monitoring and CSV output supported)
• Log/waveform storage: 4,000 samples before and after events (0.5 ms intervals), latest three datasets exportable as CSV
• PC shutdown support: Up to 10 PCs per UPS (maximum)
• Compatibility: Mounting bracket compatible with FW-S series (0.7K/1.0K)
• Volume/weight improvement: ~40% volume reduction and up to ~33% weight reduction versus FW-S series
• Standard price: Contact sales channel for details
• Availability: Available
