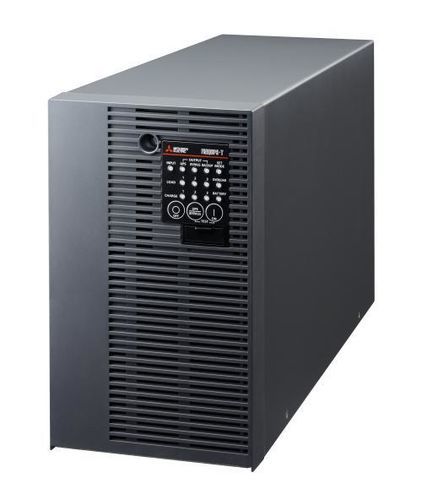

Industrial UPS FW-T10N-0.75K

on-lineACcompact

Basic information
Model: FW-T10N-0.75K
Overview: Smallest-class uninterruptible power supply (UPS) with Ethernet as standard, optimized for factory automation networks.
Status: Available

Features
Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared with the FW-S series, improving cabinet and equipment integration and simplifying installation.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), facilitating retrofits and replacements.

Operation

• Ethernet connectivity enables easy addition to existing networks (no device limit). Note: a single UPS can perform orderly shutdown for up to 10 PCs.
• Event log function provides visibility into operating status, reducing site visits and enabling remote monitoring during power incidents.
• Stores abnormal waveforms (sags, voltage fluctuations, etc.). Captures up to 4000 samples before and after events at 0.5 ms intervals; the latest three datasets can be exported as CSV.
• CSV export can be performed from a web browser or via Mitsubishi dedicated app "FREQSHIP-Pro".
• Stored event conditions include:
  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short circuit
  • Voltage sag
  • Input voltage threshold monitoring
  • Output current instantaneous threshold monitoring
  • Output current RMS threshold monitoring
  • Output voltage threshold monitoring
  • Battery operation start

Updates

• Visibility of remaining life for the UPS and battery enables confirmation of replacement timing, supporting budget planning and predictive maintenance to avoid equipment downtime.

Characteristics / Specifications

• Model: FW-T10N-0.75K
• Category: Uninterruptible Power Supply (UPS), smallest class
• Communication: Ethernet standard (easy network addition)
• Design improvements: ~40% volume reduction, up to ~33% weight reduction vs FW-S series
• Mounting compatibility: Compatible with FW-S series (0.7K/1.0K) mounting brackets
• Logs/Recording: Stores up to 4000 samples at 0.5 ms intervals before/after events; latest three datasets exportable as CSV
• PC shutdown limit: Can orderly shut down up to 10 PCs per UPS
• Operational support: Event logs, remote monitoring, CSV export (web browser or "FREQSHIP-Pro")
• Status: Available
