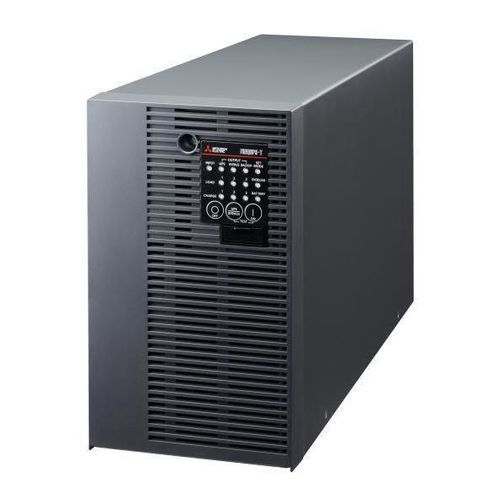

Industrial UPS FW-T10N-1.0K

on-lineACcompact

Basic information
Model: FW-T10N-1.0K
Overview: Smallest-class UPS. Ethernet standard for FA applications
Standard price: Not listed
Availability: Available

Features
Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared to the FW-S series, improving integration into equipment and control panels.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), enabling replacement of existing units.

Operation

• Ethernet-equipped models can be easily added to existing networks (one UPS can shut down up to 10 PCs).
• Event log records operating status, supporting remote monitoring and visualization during troubleshooting.
• Saves abnormal waveforms such as voltage sags and fluctuations. Performs 4,000 samplings (0.5 ms intervals) before and after events and exports the latest three datasets as CSV files.
• CSV files can be exported via a web browser or the dedicated app "FREQSHIP-Pro".
• Example saved event conditions:
  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short circuit
  • Voltage sag
  • Upper/lower limit monitoring (input voltage)
  • Upper/lower limit monitoring (output current instantaneous value)
  • Upper/lower limit monitoring (output current RMS)
  • Upper/lower limit monitoring (output voltage)
  • Battery operation start

Replacement

• Visualization of remaining life for the UPS unit and battery enables confirmation of replacement timing, supporting preventive maintenance and budgeting for updates.

Technical specifications

• Model: FW-T10N-1.0K
• Class: Smallest-class UPS
• Communication: Ethernet standard
• Physical improvements: approx. 40% volume reduction, up to 33% weight reduction
• Mounting compatibility: compatible with FW-S series (0.7K/1.0K) mounting brackets
• Shutdown-capable PCs: up to 10 PCs per UPS
• Event log: operating status recording and abnormal waveform storage (total 4,000 samples at 0.5 ms intervals), latest 3 datasets exported as CSV
• CSV export methods: web browser or app "FREQSHIP-Pro"
• Saved event examples: input voltage abnormality, overload, output short circuit, voltage sag, various upper/lower limit monitoring, battery operation start
• Availability: Available
