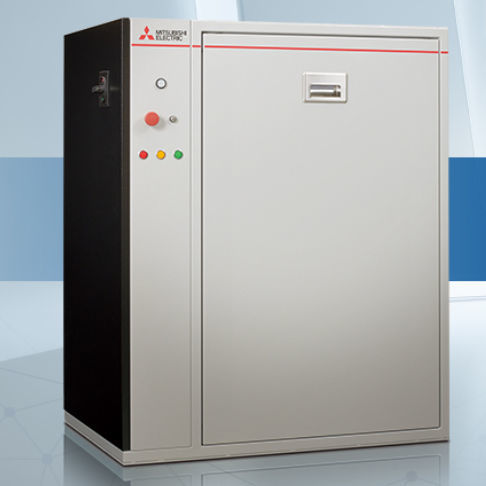

Continuous wave laser source MF series

CWfibernear-infrared

Overview

• Proven performance integrated into our fiber laser processing systems over many years, combining high reliability and production throughput.
• Assembled in a class 10,000 cleanroom to maintain rigorous quality control.

Stable long-term operation and warranty

• ELS (Extended Lifetime Structure) technology extends module service life.
• In-house development and manufacturing expertise plus advanced maintenance capabilities enable oscillator warranty coverage.*
• *Warranty period varies depending on delivery and contract conditions.

Comprehensive service network

• Nationwide service centers and consistent spare-parts supply minimize machine downtime risk.
• Rapid response for customer emergencies to support stable operation.

Lineup (key specifications)
Oscillator model | MF20-S | MF40-S | MF40 | MF60 | MF80 | MF100
Rated output [W] | 2,000 | 4,000 | 4,000 | 6,000 | 8,000 | 10,000
Oscillation mode | CW (all models)
Wavelength [nm] | approx. 1,070
Fiber core diameter [µm] | MF20-S / MF40-S: 50 µm, MF40 / MF60 / MF80 / MF100: 100 µm
Overall dimensions [mm] (W x D x H) | 1,000 x 800 x 1,300

Features / Technical specifications (excerpt)

• Product series name: MF series
• Rated output range: 2,000 W to 10,000 W (varies by model)
• Oscillation mode: CW (continuous wave)
• Wavelength: approx. 1,070 nm
• Fiber core diameter: 50 µm (lower-power models) / 100 µm (medium to high-power models)
• Overall dimensions (common reference): 1,000 x 800 x 1,300 mm (W x D x H)
• Assembly environment: assembled in a class 10,000 cleanroom
• Reliability enhancement: ELS (Extended Lifetime Structure) for module lifetime extension
