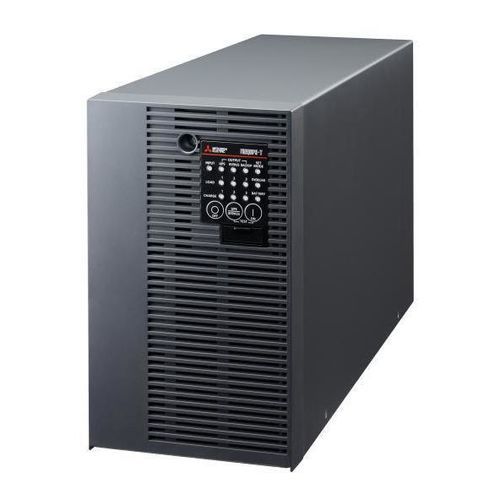

On-line UPS FW-T10CT

ACcompacthigh-density

Basic information
Model: FW-T10CT-0.75K
Overview: Environment-hardened UPS designed to meet "Pollution Degree 3" conditions commonly found in manufacturing environments.
List price: Not specified
Availability: Available

Features
Selection

• Achieves approximately 40% volume reduction and up to 33% weight reduction compared with the previous FW-S series, improving integration into equipment and control panels.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), enabling straightforward retrofit upgrades.

Pollution Degree 3 environment compliance

• Equipped with a dust filter at the intake to reduce ingress of dust into the UPS enclosure.
• PCB-level coating applied to internal boards, designed in accordance with Pollution Degree 3 as specified in IEC/JIS standards (IEC 62477-1 / JIS C62477-1), improving suitability for manufacturing sites.

Operation

• Event log function visualizes operating status and recorded events, reducing on-site work and supporting remote monitoring.
• Samples and stores up to 4,000 abnormal waveform points (pre- and post-event) at 0.5 ms intervals; the latest three data sets can be exported as CSV files.
• CSV export is available via a web browser or the dedicated application (FREQSHIP-Pro).
• Recordable event types

  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short-circuit
  • Sag (momentary voltage dip)
  • Upper/lower limit monitoring (input voltage)
  • Upper/lower limit monitoring (output current instantaneous)
  • Upper/lower limit monitoring (output current RMS)
  • Upper/lower limit monitoring (output voltage)
  • Battery operation start

Replacement planning

• Visualization of remaining life for both the UPS unit and battery enables confirmation of replacement timing, supporting budgeting and predictive maintenance.

Features / Technical specifications

• Product series: Uninterruptible Power Supply (≤ 5 kVA)
• Model: FW-T10CT-0.75K
• Environment compliance: Pollution Degree 3 (IEC 62477-1 / JIS C62477-1)
• Dust protection: Intake dust filter
• PCB treatment: Coated boards for contamination resistance
• Volume reduction: ~40% compared with previous models
• Weight reduction: Up to ~33%
• Mounting compatibility: Compatible with FW-S series (0.7K/1.0K) mounting brackets
• Event log capacity/sampling: Samples abnormal waveforms up to 4,000 points (0.5 ms interval); latest 3 datasets exportable as CSV
• Example recordable events: Input voltage abnormality / Overload / Output short-circuit / Sag / Various upper-lower limit monitoring / Battery operation start
• Operation support: CSV export via web browser / FREQSHIP-Pro
• Availability: Available
