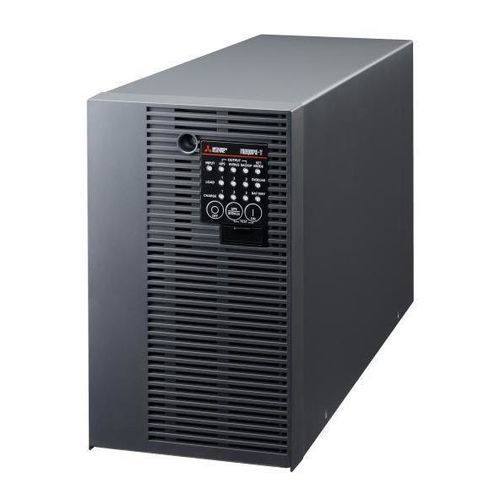

On-line UPS FW-T10CT-1.0K

ACcompactwith communication system

Basic information
Model: FW-T10CT-1.0K
Overview: UPS designed for manufacturing environments compliant with Pollution Degree 3 (dust-prone) requirements
List price: Not stated
Availability: On the market

Features — Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared with the previous FW-S series, improving integration into equipment and control panels.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), facilitating retrofit replacements.

Features — Pollution Degree 3 compliance

• Equipped with a dust-filter at the intake to reduce ingress of dust and particulates into the UPS enclosure.
• Internal PCBs are coated and the design conforms to Pollution Degree 3 in accordance with IEC 62477-1 / JIS C62477-1.

Features — Operation and monitoring

• Event log records operating status and incidents for visibility and analysis.
• Stores abnormal waveform data (e.g., sags, voltage fluctuations): 4,000 samples total before/after event, sampled at 0.5 ms intervals; the latest three datasets can be exported as CSV files.
• CSV export can be performed via a web browser or the 三菱専用アプリケーション（FREQSHIP-Pro）.
• Recordable event conditions (saved event triggers):

  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short-circuit
  • Voltage sag (momentary dip)
  • Upper/lower limit monitoring (input voltage)
  • Upper/lower limit monitoring (instantaneous output current)
  • Upper/lower limit monitoring (RMS output current)
  • Upper/lower limit monitoring (output voltage)
  • Battery operation start

Features — Lifecycle and replacement

• Visualisation of remaining service life for both UPS unit and batteries enables planning of timely replacements and contributes to predictive maintenance to avoid downtime due to degradation.

Specifications / main items

• Product name: FW-T10CT-1.0K
• Category: Uninterruptible Power Supply (UPS)
• Standards compliance: IEC 62477-1 / JIS C62477-1 (designed for Pollution Degree 3)
• Environmental measures: Intake dust filter, PCB coating
• Installation: ~40% volume reduction, up to ~33% weight reduction compared with FW-S series
• Mounting compatibility: Compatible with FW-S series (0.7K/1.0K) mounting brackets
• Logging/monitoring: Event log, abnormal waveform storage (up to 4,000 samples at 0.5 ms intervals), export of latest 3 datasets as CSV
• Data export: Web browser and 三菱専用アプリケーション（FREQSHIP-Pro） support
• List price: Not stated
• Availability: On the market
