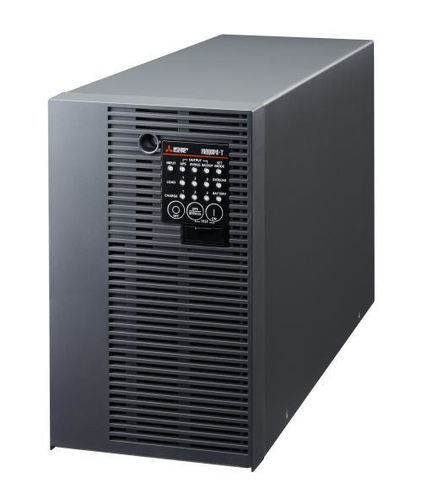

Industrial UPS FW-T10C-0.75K

on-lineACcompact

Basic information
Product name: FW-T10C-0.75K
Overview: smallest-class uninterruptible power supply (UPS). End-to-end support from selection to operation and replacement.
Standard price: not listed
Availability: available

Features
Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared with the previous FW-S series, improving integration into equipment and control panels and enhancing installation efficiency.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), facilitating retrofits and replacements.

Operation
The event log function visualizes operating status and UPS events, supporting reduced site visits and remote monitoring during power incidents.
Abnormal waveform recording saves a total of 4000 samples (0.5 ms interval) before and after an event; the latest three records can be exported as CSV files. CSV export is available via a web browser or the dedicated app FREQSHIP-Pro.
Recordable events (examples):

• Input voltage abnormality (overvoltage)
• Overload
• Output short-circuit
• Voltage sag
• Upper/lower limit monitoring (input voltage)
• Upper/lower limit monitoring (output current, instantaneous)
• Upper/lower limit monitoring (output current, rms)
• Upper/lower limit monitoring (output voltage)
• Battery operation start

Renewal
Provides visibility of remaining life for both the UPS unit and batteries, enabling confirmation of replacement timing. Supports budget planning for replacements and predictive maintenance to avoid downtime due to degradation.

Features / Specifications (technical specifications)

• Product name: FW-T10C-0.75K
• Category: Uninterruptible power supply (UPS), smallest-class
• Design features: Approximately 40% reduction in volume and up to 33% reduction in weight compared with previous models
• Compatibility: Mounting brackets compatible with FW-S series (0.7K/1.0K) (brackets sold separately)
• Logging/diagnostics: Event log; abnormal waveform stored as a total of 4000 samples (0.5 ms interval) around events; latest three records can be exported as CSV
• Data output: CSV export via web browser or dedicated app
• Recordable event examples: input voltage abnormality, overload, output short, voltage sag, various upper/lower limit monitors, battery operation start
• Replacement support: Remaining life visualization for unit and battery
• Availability: available
