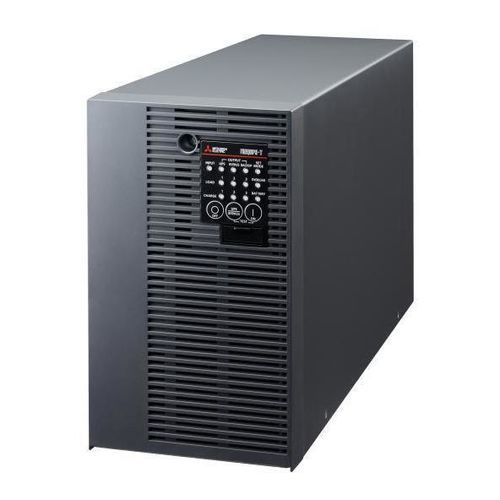

On-line UPS FW-T10CNT-0.75K

ACover-voltagewith communication system

Basic information
Model: FW-T10CNT-0.75K
Overview: Environment-resistant UPS designed for applications requiring Contamination Degree 3. Standard Ethernet communication included.
Market status: Available

Key selection features

• Approx. 40% volume reduction and up to 33% weight reduction compared with the FW-S series, improving integration into cabinets and equipment.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), facilitating replacements and retrofits.

Environmental: contamination degree 3

• Equipped with a dust filter at the intake to limit ingress of contaminants (dust, etc.) into the UPS.
• Internal PCBs are coated to meet design requirements for Contamination Degree 3 as specified in IEC 62477-1 / JIS C62477-1, improving suitability for manufacturing and similar environments.

Operation and monitoring

• Ethernet models allow easy connection to existing networks (up to 10 PCs can be shut down by a single UPS).
• Event log function provides visibility into operation and incidents, enabling remote monitoring to reduce site visits and speed response to power issues.
• Anomalous waveforms such as voltage sags and transients are recorded (up to 4000 samples at 0.5 ms intervals). The three most recent waveform datasets can be exported as CSV via a web browser or the dedicated app "FREQSHIP-Pro".

Logged events (storage conditions)

• Input voltage abnormality (overvoltage)
• Overload
• Output short-circuit
• Voltage sag (momentary drop)
• Upper/lower threshold monitoring (input voltage)
• Upper/lower threshold monitoring (output current — instantaneous)
• Upper/lower threshold monitoring (output current — RMS)
• Upper/lower threshold monitoring (output voltage)
• Battery operation start

Lifecycle & replacement

• Provides visibility of remaining life for both the UPS and battery, supporting budgeting for replacements and predictive maintenance to reduce unplanned downtime.

Technical specifications

• Model: FW-T10CNT-0.75K
• Design compliance: Conforms to Contamination Degree 3 (IEC 62477-1 / JIS C62477-1)
• Communication: Ethernet (standard)
• Log/data output: Event log; anomalous waveform capture (up to 4000 samples); CSV export (latest 3 datasets)
• Network shutdown: Can shut down up to 10 PCs
• Size/weight: Approx. 40% volume reduction and up to 33% weight reduction vs. FW-S series
• Market status: Available
