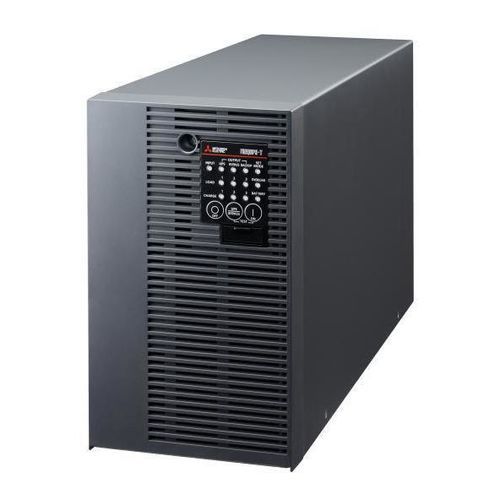

Industrial UPS FW-T10CN-0.75K

on-lineACcompact

Basic information
Model: FW-T10CN-0.75K
Overview: Smallest-class UPS. Ethernet standard for FA applications.
Standard price: Please contact your nearest branch or dealer.
Release status: On sale

Features - Selection

• Approximately 40% reduction in volume and up to 33% reduction in weight compared with the FW-S series, improving cabinet and equipment integration and contributing to increased installation efficiency.
• Mounting bracket (sold separately) is compatible with the FW-S series (0.7K/1.0K), facilitating retrofit replacement.

Features - Operation

• Ethernet-equipped models are easy to add to existing networks (one UPS can perform orderly shutdown for up to 10 PCs).
• Event log function records operating conditions, enabling visualization of UPS events and facilitating remote monitoring to reduce onsite visits and respond to sudden power issues.
• Saves abnormal waveforms such as voltage sags and fluctuations. Samples a total of 4000 points (0.5 ms interval) before and after events; the latest 3 data sets can be exported as CSV files.
• CSV export available via web browser or Mitsubishi dedicated app "FREQSHIP-Pro". ※Settings (mode switching, threshold changes) are performed from "FRQSHIP-Pro".

Features - Replacement

• Visualizes remaining life of the UPS and battery, enabling confirmation of replacement timing for budgeting and predictive maintenance to avoid downtime due to degradation.

Recordable items (saved event conditions)

• Input voltage abnormality (overvoltage)
• Overload abnormality
• Output short circuit
• Voltage sag
• Upper/lower limit monitoring (input voltage)
• Upper/lower limit monitoring (output current - instantaneous)
• Upper/lower limit monitoring (output current - RMS)
• Upper/lower limit monitoring (output voltage)
• Battery operation start

Notes
This product is a smallest-class UPS designed for FA use with standard Ethernet connectivity, event log acquisition, and external output functions.

technical specifications

• Manufacturer: 三菱電機
• Series: Uninterruptible power supply (≤ 5 kVA)
• Model: FW-T10CN-0.75K
• Product category: Uninterruptible power supply (UPS), smallest-class UPS
• Ethernet: Standard equipment (supports remote monitoring/management via network)
• Maximum number of PCs for shutdown: 10 units
• Event waveform storage: Total 4000 samples (0.5 ms interval); latest 3 data sets exportable as CSV
• CSV export methods: Web browser, Mitsubishi dedicated app "FREQSHIP-Pro" / Settings performed from "FRQSHIP-Pro"
• Compatibility: Mounting bracket compatible with FW-S series (0.7K/1.0K)
• Physical characteristics: Approx. 40% volume reduction, up to 33% weight reduction compared with FW-S series
• Standard price: Contact nearest branch or dealer
• Release status: On sale
