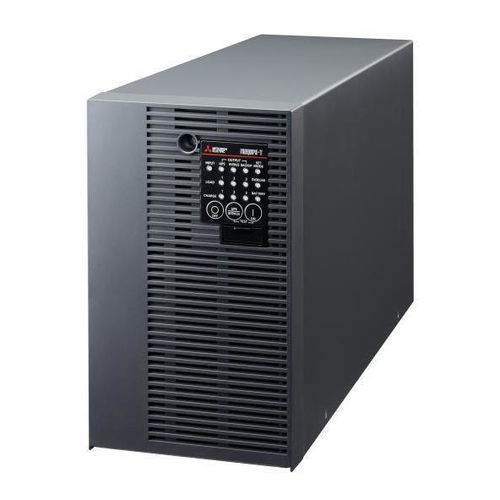

Industrial UPS FW-T10CNT-1.0K

on-linesingle-phasecompact

Basic information
Model: FW-T10CNT-1.0K
Overview: Environmental-rated UPS designed for environments requiring pollution degree 3. Ethernet interface is standard for FA applications.
Availability: Available

Features
Selection

• Approximately 40% volume reduction and up to 33% weight reduction compared with the previous FW-S series, improving integration into equipment and control panels.
• Mounting brackets (sold separately) are compatible with the FW-S series (0.7K/1.0K), enabling retrofit replacement.

Pollution degree 3 environment compliance

• Equipped with a dust filter at the intake to reduce ingress of dust and contaminants into the UPS interior.
• Internal PCBs are coated and the design conforms to pollution degree 3 as described in IEC/JIS standards, improving environmental tolerance for manufacturing sites (IEC 62477-1 / JIS C62477-1).

Operation

• Ethernet support simplifies adding units to existing networks (no specific limit on number of units defined).
• Event log function enables monitoring of operating status, useful for reducing on-site work via remote monitoring and for fault analysis.
• Abnormal waveforms (sags, voltage fluctuations, etc.) are sampled 4,000 points (0.5 ms intervals) before and after an event; the latest three sets can be exported as CSV.
• CSV export can be executed from a web browser or the Mitsubishi dedicated app "FREQSHIP-Pro".
• One UPS can initiate shutdown for up to 10 PCs.

Storable event items (conditions for saved events)

• Input voltage abnormality (overvoltage)
• Overload abnormality
• Output short-circuit
• Voltage sag
• Upper/lower limit monitoring (input voltage)
• Upper/lower limit monitoring (instantaneous output current)
• Upper/lower limit monitoring (RMS output current)
• Upper/lower limit monitoring (output voltage)
• Battery operation start

Maintenance / Replacement

• Visualization of remaining life for the UPS and batteries supports timing confirmation for replacement and predictive maintenance.

Features / Specifications (summary)

• Environmental design: Designed to meet pollution degree 3 (dust filter, PCB coating, etc.)
• Communications: Ethernet standard (suitable for FA network operation)
• Logging/analysis: Event log and high-resolution sampling of abnormal waveforms (4,000 points at 0.5 ms intervals) with CSV output
• Operational support: Remote monitoring and acquisition of operating history to assist maintenance and analysis
• Installation: Significant reductions in volume and weight compared with previous models; compatibility with existing mounting brackets
• PC shutdown: Supports shutdown of up to 10 PCs per UPS
