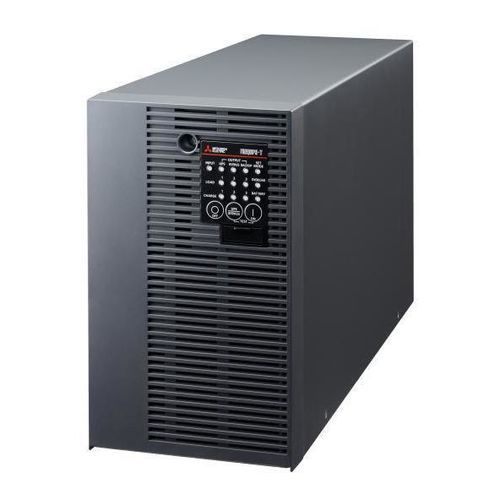

Industrial UPS FW-T10C-1.0K

on-lineACcompact

Basic information
Model: FW-T10C-1.0K
Overview: Small-class UPS. Support available for selection, operation and replacement planning.
List price: not specified
Availability: On the market

Features - Selection

• Approximately 40% reduction in volume and up to 33% reduction in weight versus the previous FW-S series, improving integration into equipment cabinets and panels.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), facilitating replacement of existing units.

Features - Operation

• Event log function visualizes operating status and incidents, reducing on-site work and aiding remote monitoring.
• Abnormal waveforms such as sags and voltage fluctuations are stored. The device captures a total of 4000 samples at 0.5 ms intervals covering before and after an event; the latest three datasets can be exported as CSV files.
• CSV export is available via a web browser or the manufacturer's dedicated app 'FREQSHIP-Pro'.
• Recordable event types (storage conditions):

  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short-circuit
  • Voltage sag
  • Upper/lower limit monitoring (input voltage)
  • Upper/lower limit monitoring (output current — instantaneous)
  • Upper/lower limit monitoring (output current — RMS)
  • Upper/lower limit monitoring (output voltage)
  • Battery operation start

Features - Replacement planning

• Provides visibility of remaining life for both the UPS unit and batteries, enabling confirmation of replacement timing and supporting predictive maintenance and update planning.

Features / Specifications (summary)

• Model: FW-T10C-1.0K
• Category: Uninterruptible power supply (UPS)
• Size / weight: Approx. 40% volume reduction and up to 33% weight reduction vs. previous FW-S series
• Mounting compatibility: Compatible with FW-S series (0.7K/1.0K) mounting brackets (brackets sold separately)
• Event log / waveform storage: 4000 samples at 0.5 ms intervals; latest three datasets exportable as CSV
• Data output: CSV export via web browser or manufacturer's dedicated app 'FREQSHIP-Pro'
• Availability: On the market
