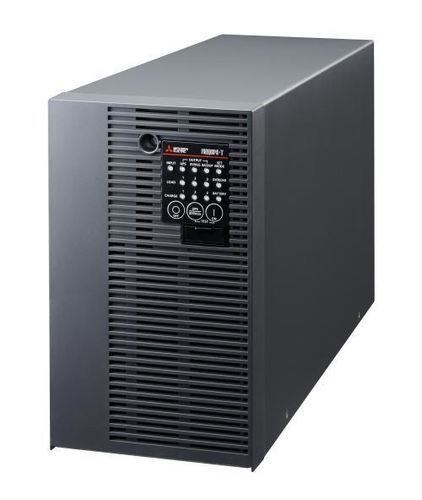

AC UPS FW-T10-1.0K

on-linecompactwith communication system

Basic information
Model: FW-T10-1.0K
Overview: Small-class UPS optimized for equipment and panel integration. Total support from selection to operation and renewal.
List price:
Availability: Available

Features
Selection

• Approximately 40% reduction in volume and up to 33% reduction in weight compared with the FW-S series, improving compatibility for equipment and panel integration.
• Mounting brackets (sold separately) are compatible with FW-S series (0.7K/1.0K), supporting replacement of existing units.

Operation

• The event log function visualizes operating conditions and events occurring in the UPS, contributing to operational efficiency such as remote monitoring.
• Abnormal waveforms such as sags and voltage fluctuations are stored. Sampling of 4,000 points (0.5 ms interval) is performed before and after events, and the latest three datasets can be exported as CSV files.
• CSV export can be executed from a web browser or the dedicated app "FREQSHIP-Pro".
• Captured items (saved event conditions):

  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short-circuit
  • Voltage sag
  • Upper/lower limit monitoring (input voltage)
  • Upper/lower limit monitoring (output current — instantaneous)
  • Upper/lower limit monitoring (output current — RMS)
  • Upper/lower limit monitoring (output voltage)
  • Battery operation start

Renewal

• Visualization of the remaining life of the UPS and battery enables identification of renewal timing, contributing to predictive maintenance to prevent equipment downtime due to degradation.

Technical specifications

• Model: FW-T10-1.0K
• Series: Uninterruptible Power Supply (≤5 kVA)
• Application: Small-class UPS optimized for equipment and panel integration
• Dimensions & weight: Approx. 40% reduction in volume and up to 33% reduction in weight compared with the FW-S series
• Mounting compatibility: Compatible with FW-S series (0.7K/1.0K) mounting brackets
• Event log function: Built-in abnormal waveform storage and analysis
• Waveform storage: 4,000 samples before and after events (0.5 ms interval); latest three datasets exportable to CSV
• Data output: CSV export via web browser or dedicated app "FREQSHIP-Pro"
• Saved event conditions (main captured items):
  • Input voltage abnormality (overvoltage)
  • Overload
  • Output short-circuit
  • Voltage sag
  • Upper/lower limit monitoring (input voltage / output current instantaneous / output current RMS / output voltage)
  • Battery operation start
• Availability: Available
