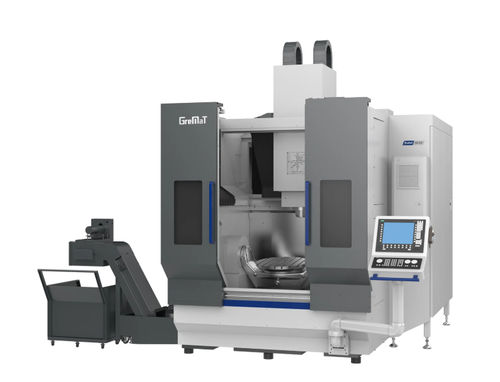

5-axis CNC machining center U630

verticalgantrycolumn type

For reliable machining processes in automated systems, the production cabin is with chipwaste-optimized stainless steel cladding and integrated bed flushing from left/right/front/rear ensures ideal chip disposal. Capacity - Max . workpiece diameter - mm - 650 Distance from spindle face to table surface - mm - 120-720 A axis travel - ° - 230° (±115°) C axis travel - ° - 360 ° Rapid rapid traverse - m/min - 36 Maximum speed A/C - rpm - 60/ 100 Spindle Spindle drive type - Build in Motor spindle Spindle taper hole - Rated torque of electric spindle - Nm - 72 Swivel Table Table size - mm - .630 Rotary axis reference hole - mm - Φ50 H8 T-slot - mm - 7-18 × 80 Continuous torque A/C - Nm - 1290 ×2/600 Maximum torque A/C - Nm - 2400 ×2/ 1100 Tool Changer Type - Chain Type Maximum tool diameter (Full/beside empty) - mm - Φ75/Φ120 Maximum tool length - mm - Φ300 Maximum tool weight - Kg - 8 Control system Numerical control system - Siemens 840D X/Y/Z/A*2/C axes motor power - kW - 4 .3/5 .2/4 .3/6 .25*2/4 .46 Servo motor rated torque X/Y/Z - Nm - 27/36/27 Accuracy Positioning accuracy A/C - arc-sec - 5 Repeatability accuracy A/C - arc-sec - 3 Others - Screw specification X/Y/Z - mm - 40/55/40 Guideway specification X/Y/Z - mm - Roller 45/45/45 Power Capacity - kW - 68 Compressed Air - Mpa - 0 .6-0 .8
