4-axis CNC milling machine Power WZ6
vertical2-spindleBT 40

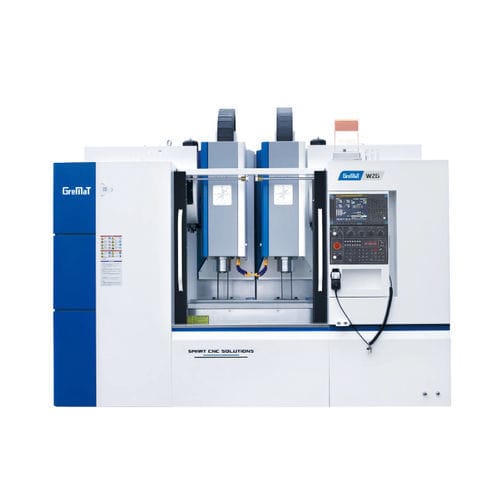

4-axis CNC milling machine - Power WZ6 - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / 2-spindle / BT 40
4-axis CNC milling machine - Power WZ6 - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / 2-spindle / BT 40
Add to favorites
Compare this product

Characteristics

Number of axes
4-axis
Spindle orientation
vertical
Number of spindles
2-spindle
Spindle mount
BT 40
Number of tool stations
24 tools
Other characteristics
high-productivity
X travel

450 mm
(17.72 in)

Y travel

400 mm
(15.75 in)

Z travel

500 mm
(19.69 in)

Rotational speed

8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)

Power

7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

700 kg
(1,543 lb)

Tool weight (max)

8 kg
(17.6 lb)

Weight

6,000 kg
(13,227.74 lb)

Overall length

2,700 mm
(106.3 in)

Overall width

2,100 mm
(82.7 in)

Overall height

2,340 mm
(92.1 in)

Description

By twin spindle design, one VMC can cut two workpieces simultaneously which increases the productivity by almost 200%, meanwhile the floor space occupied is the same as one traditional VMC. 2. Reduced investment and maintenance costs The customer can reduce the base machine cost compared to two conventional VMC. Additionally, for ancillary items such as spindle probe, 4th axis rotary table, mist collector etc, only one is required, thereby reducing the total investment cost. 3. Less electricity consumption, Eco-friendly. Electricity consumption and operator walking distance are all reduced. This green and environmental protection design philosophy is one of the core structures of our brand promises Table Table size - mm - 1200 ×450 T slot(width×nos. ×distance) - mm - 18 × 5 × 90 Travel Spindle nose to table - mm - 150-650 Spindle center to column - mm - 450 Distance between two spindle centers - mm - 400 Guideway type - mm - LM ( Roller) Dimension & Weight - Power capacity - kVA - 40
