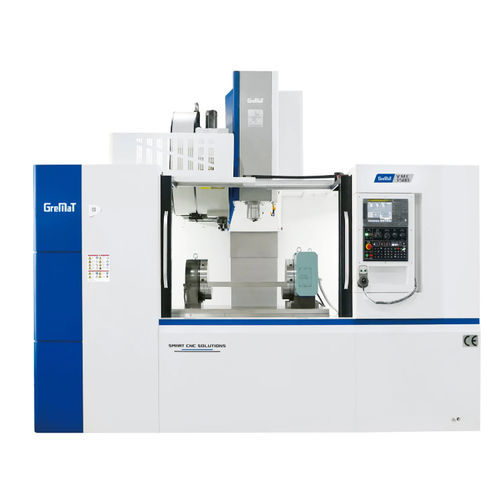

3-axis CNC milling center VMC1580 verticalBT 5024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 50
- Number of tool stations
- 24 tools
- Other characteristics
- high-performance
- X travel
1,500 mm
(59.06 in)- Y travel
800 mm
(31.5 in)- Z travel
700 mm
(27.56 in)- Rotational speed
6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)- Power
15 kW, 18.5 kW
(20.39 hp, 25.15 hp)- Work feed X-axis
20 m/min
- Work feed Y-axis
20 m/min
- Work feed Z-axis
20 m/min
- Table load capacity
1,500 kg
(3,307 lb)- Tool weight (max)
15 kg
(33.1 lb)- Weight
17,000 kg
(37,478.58 lb)- Overall length
4,000 mm
(157.5 in)- Overall width
3,100 mm
(122 in)- Overall height
3,100 mm
(122 in)
Description
The High Performance Series machines feature heavier machine castings, big ballscrews and heavy duty linear guideways that provide superior surface finishes, excellent thermal stability, and quiet operation during heavy cutting.
1. Disk Arm Type ATC
2. Ergonomic CNC Panel & MPG
3. Automatic Lubrication System
4. Full Machine Enclosure
5. Operator Door Safety Lock
6. Air Conditioned Electrical Cabinet
7. Handheld Air Gun
Table
Table size - mm - 1700 × 800
T slot(width×nos. ×distance) - mm - 18 × 5 × 150
Travel
Spindle nose to table - mm - 130-830
Spindle center to column - mm - 810
Guideway type - LM( Roller) , BOX: Z
Dimension&Weight
Power capacity - kVA - 30
