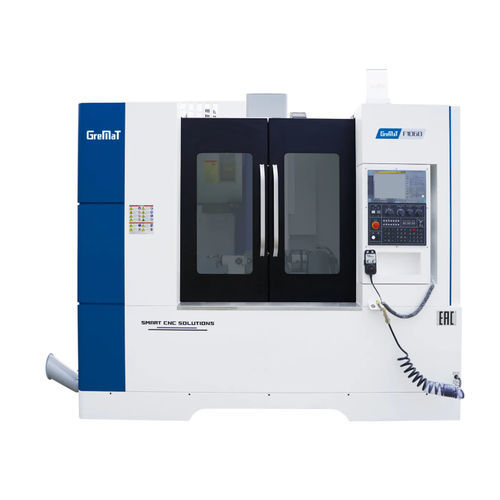

3-axis CNC milling center F1060 verticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Other characteristics
- high-speed
- X travel
1,000 mm
(39.37 in)- Y travel
600 mm
(23.62 in)- Z travel
550 mm
(21.65 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
48 m/min
- Table load capacity
600 kg
(1,323 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
6,300 kg
(13,889.12 lb)- Overall length
2,700 mm
(106.3 in)- Overall width
2,150 mm
(84.6 in)- Overall height
2,400 mm
(94.5 in)
Description
To increase your productivity, the Z-MaT F series vertical machining center is standard with a 48m/min fast traverse, a high-speed ATC, big pitch C3 ballscrew, cylindrical roller linear guideway. The all-around design enhanced performance of the F series machines are popularly applied to 5G, IT, aero space and defence industry.
Disk type ATC
Ergonomic CNC Panel & MPG
Automatic Lubrication System
Full Machine Enclosure
Operator Door Safety Lock
Air Conditioned Electrical Cabinet
Handheld Air Gun
Spindle Spindle Oil Chiller
Table
Table size - mm - 1200×600
T slot(width×nos.×distance) - mm - 18×5× 100
Travel
Spindle center to column - mm - 610
Spindle nose to table - mm - 130-680
Guideway type -
LM (Roller)
Feed&Magazine
X/Y/Zaxis rapid traverse - m/min - 48
ATC capacity/type - No./type - 24/Disk
Dimension &Weight
Power capacity - kVA - 24
