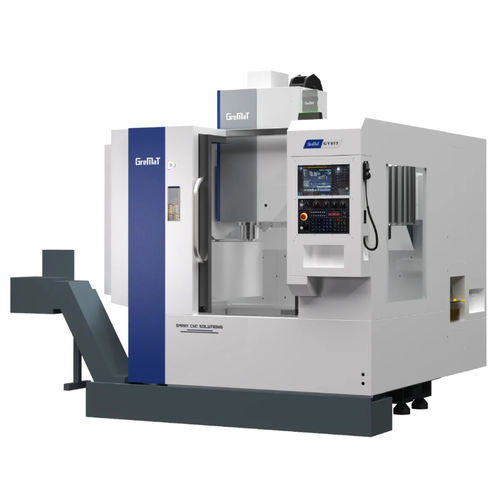

3-axis CNC milling center GV855verticalgantry24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Number of tool stations
- 24 tools
- Other characteristics
- high-speed, high-productivity
- X travel
800 mm
(31.5 in)- Y travel
550 mm
(21.65 in)- Z travel
400 mm
(15.75 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
48 m/min
- Table load capacity
600 kg
(1,323 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
5,200 kg
(11,464.04 lb)- Overall length
2,490 mm
(98 in)- Overall width
2,145 mm
(84.4 in)- Overall height
2,370 mm
(93.3 in)
Description
With more cost-effectiveness and productivity, the Z-MaT Gantry-Type vertical machining center is standard with a 48m/min fast traverse, a high-speed ATC, big pitch C3 ballscrew, cylindrical roller linear guideway. The all-around design enhanced performance of the Gantry-Type machines are popularly applied to 5G, IT, aero space and defence industry.
Disk type ATC
Ergonomic CNC Panel & MPG
Automatic Lubrication System
Full Machine Enclosure
Operator Door Safety Lock
Air Conditioned Electrical Cabinet
Handheld Air Gun
Spindle Oil Chiller
Table
Table size - mm - 1000*550
T slot(width×nos.×distance) - mm - 18×5×90
Travel
Spindle center to column - mm - 610
Spindle nose to table - mm - 150-550
Guideway type - LM (Roller)
Dimension&Weight
Power capacity - kVA - 25
