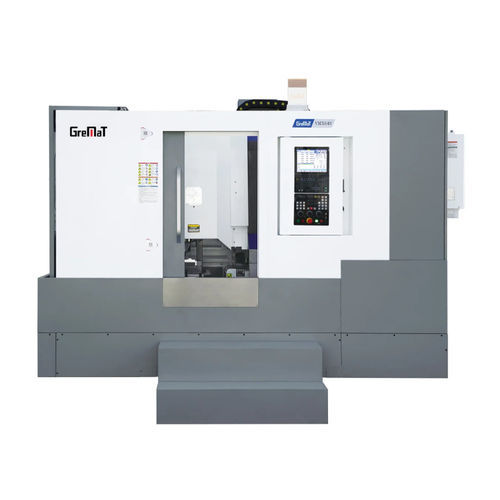

3-axis CNC milling machine VMX640

verticalwith rotary tableBT 40

The dual-workstation machining center facilitates automatic interchange of worktables. While one workstation is engaged in machining, the other side switches to load raw workpiece without the need for downtime. It ensures efficient and high-precision machining mass batch product 1、The rotary table is divided into front and rear worktables, controlled by an automatic system for seamless transition. The front and rear worktables serve distinct purposes, with one designated for machining and the other for clamping. This design optimizes clamping processes, enabling continuous operation without interruptions. 2、High-Quality Castings: The main castings are crafted using advanced Meehanite high-grade cast iron through resin sand casting technology. Employing advanced finite element analysis techniques, the design is structurally sound, layout-optimized, and undergoes secondary aging treatment, ensuring long-term machining stability. 3、Double-Sided End Gear Table Structure: The exchangeable table features a double-sided end gear structure, providing high positioning accuracy and strong load-bearing capacity. Table - Worktable Area - mm - 1140×820 (unilateral 570×820) T slot(No. × width × distance)mm - （3×22H8×130）×2 Capacity Spindle nose to table - mm - 150-660 Spindle center to column - mm - 450 Maximum Cutting Feed Rate - m/min - 8
