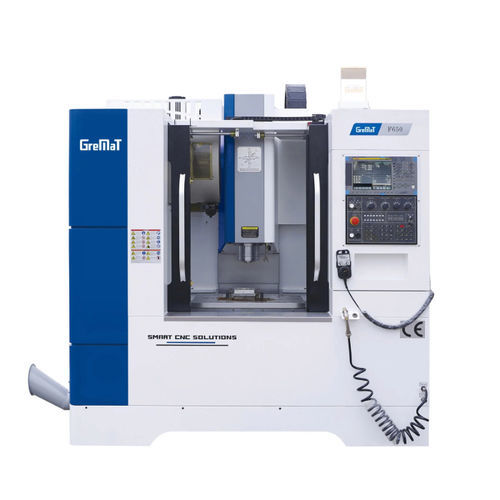

3-axis CNC milling machine F650 verticalfor the aerospace industryhigh-productivity
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Applications
- for the aerospace industry
- Other characteristics
- high-productivity, high-speed
- X travel
600 mm
(23.62 in)- Y travel
500 mm
(19.69 in)- Z travel
550 mm
(21.65 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
5.5 kW, 7.5 kW, 11 kW
(7.48 hp, 10.2 hp, 14.96 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
48 m/min
- Table load capacity
400 kg
(882 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
4,500 kg
(9,920.8 lb)- Overall length
2,200 mm
(86.6 in)- Overall width
2,000 mm
(78.7 in)- Overall height
2,250 mm
(88.6 in)
Description
To increase your productivity, the Z-MaT F series vertical machining center is standard with a 48m/min fast traverse, a high-speed ATC, big pitch C3 ballscrew, cylindrical roller linear guideway. The all-around design enhanced performance of the F series machines are popularly applied to 5G, IT, aero space and defence industry.
Disk type ATC
Ergonomic CNC Panel & MPG
Automatic Lubrication System
Full Machine Enclosure
Operator Door Safety Lock
Air Conditioned Electrical Cabinet
Handheld Air Gun
Spindle Oil Chiller
