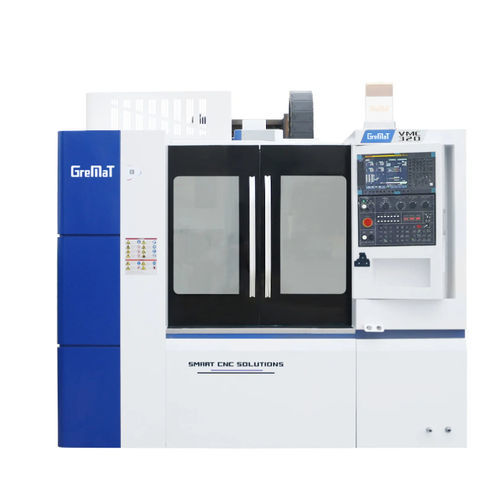

3-axis CNC milling center VMC320 verticalBT 30heavy-duty
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 30
- Applications
- heavy-duty
- Other characteristics
- high-performance, with tool changer
- X travel
320 mm
(12.6 in)- Y travel
240 mm
(9.45 in)- Z travel
450 mm
(17.72 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
5.5 kW, 7.5 kW
(7.48 hp, 10.2 hp)- Work feed X-axis
28 m/min
- Work feed Y-axis
28 m/min
- Work feed Z-axis
28 m/min
- Table load capacity
260 kg
(573 lb)- Tool weight (max)
3 kg
(6.6 lb)- Weight
2,400 kg
(5,291.09 lb)- Overall length
2,150 mm
(84.6 in)- Overall width
1,790 mm
(70.5 in)- Overall height
1,740 mm
(68.5 in)
Description
The High Performance Series machines feature heavier machine castings, big ballscrews and heavy duty linear guideways that provide superior surface finishes, excellent thermal stability, and quiet operation during heavy cutting.
1. Automatic Tool Changer
2. Ergonomic CNC Panel & MPG
3. Automatic Lubrication System
4. Full Machine Enclosure
5. Operator Door Safety Lock
6. Heat Exchanger
7. Air Conditioned Electrical Cabinet (VMC500/VMC700E)
8. Handheld Air Gun
Table
Table size - mm - 600 × 305
T slot(width×nos. ×distance) - mm - 14 × 3 × 85
Travel
Spindle nose to table - mm - 50-500
Spindle center to column - mm - 380
Guideway type - LM:XYZ
Dimension&Weight
Power capacity - kVA - 14
