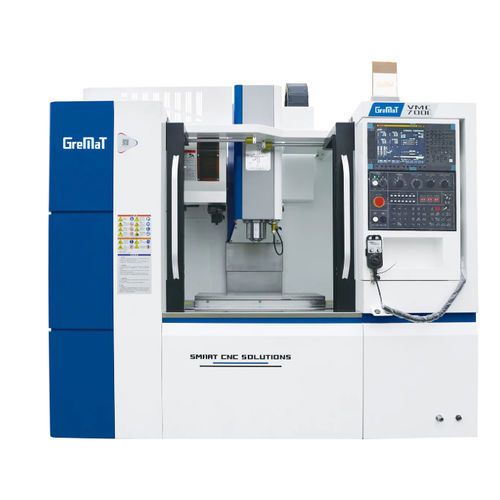

3-axis CNC milling center VMC700E verticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 16 tools
- Other characteristics
- high-performance, with tool changer
- X travel
700 mm
(27.56 in)- Y travel
400 mm
(15.75 in)- Z travel
450 mm
(17.72 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
5.5 kW, 7.5 kW, 11 kW
(7.48 hp, 10.2 hp, 14.96 hp)- Work feed X-axis
28 m/min
- Work feed Y-axis
28 m/min
- Work feed Z-axis
28 m/min
- Tool weight (max)
8 kg
(17.6 lb)- Weight
3,700 kg
(8,157.1 lb)- Overall length
2,160 mm
(85 in)- Overall width
1,880 mm
(74 in)- Overall height
1,750 mm
(68.9 in)
Description
The High Performance Series machines feature heavier machine castings, big ballscrews and heavy duty linear guideways that provide superior surface finishes, excellent thermal stability, and quiet operation during heavy cutting.
1. Automatic Tool Changer
2. Ergonomic CNC Panel & MPG
3. Automatic Lubrication System
4. Full Machine Enclosure
5. Operator Door Safety Lock
6. Heat Exchanger
7. Air Conditioned Electrical Cabinet (VMC500/VMC700E)
8. Handheld Air Gun
Table
Table size - mm - 800 ×400
T slot(width×nos. ×distance) - mm - 18 × 3 × 110
Travel
Spindle nose to table - mm - 90-540
Spindle center to column - mm - 450
Guideway type - LM( Roller) :XYZ
Dimension&Weight
Power capacity - kVA - 17
