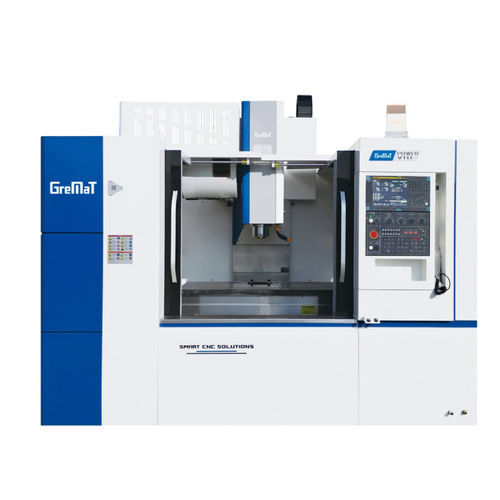

3-axis CNC milling center Power V10verticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools
- Other characteristics
- high-speed, high-power, high-rigidity
- X travel
1,050 mm
(41.34 in)- Y travel
650 mm
(25.59 in)- Z travel
600 mm
(23.62 in)- Rotational speed
8,000 rpm, 10,000 rpm, 12,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1)- Power
11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Tool weight (max)
8 kg
(17.6 lb)- Weight
8,200 kg
(18,077.91 lb)- Overall length
3,200 mm
(126 in)- Overall width
2,500 mm
(98.4 in)- Overall height
2,450 mm
(96.5 in)
Description
Machine is designed with large work area and big loading capacity, combines high speed and high rigidity.
High milling capacity and powerful drives make the machine super versatile, it can make a wide variety of workpieces for different industries.
1. Disk Arm Type ATC
2. Ergonomic CNC Panel & MPG
3. Automatic Lubrication System
4. Full Machine Enclosure
5. Operator Door Safety Lock
6. Air Conditioned Electrical Cabinet
7. Handheld Air Gun
Table
Table size - mm - 1400×650
T slot(width×nos. ×distance) - mm - 18×5×100
Travel
Spindle center to column - mm - 670
Spindle nose to table - mm - 120-720
Guideway type - LM(Roller)
Dimension & Weight
Power capacity - kVA - 25
