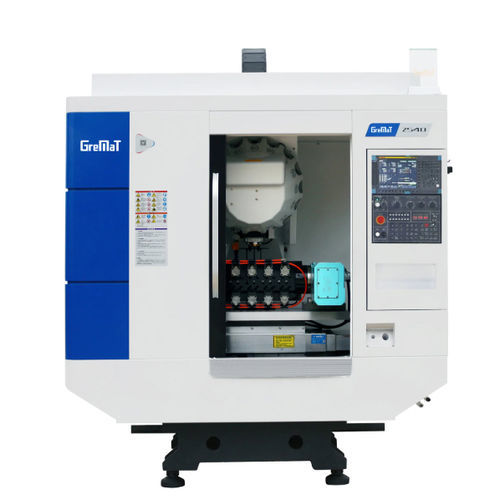

CNC tapping machine Z540

electrichigh-speedcompact

1、Advanced casting design uses precision annealing with traditional aging methods used on each casting. Provides optimal damping of vibration and ensures long-term stability and quality results. 2、Both base and column have wide spacing between ways, resulting in a design that is solid as a rock and stable as a mountain. 3、Direct drive spindle provides high efficiency, and low noise – assuring speed and torque during high-speed tapping operations. 4、Gripper arm type tool magazine – for rapid tool changes and solid machining performance. 5、Solid ball screw, bearing structure and high precision linear guideways supports rapid traverse and high speed machining. Also, assures proper orientation of machine during operation. 6、Rear chip conveyor is compact and makes for easy chip removal. Chip flow is direct and easy Table Worktable Area - mm - 600×400 Max. load of table - kg - 250 T slot(width × nos.× distance) - mm - 14×3×100 Capacity X/Y/Z-axis travel - mm - 500/400/300 Spindle nose to table - mm - 155-455 Spindle center to column - mm - 465 Spindle Maximum spindle speed - rpm - 12000, 20000 Spindle type - BT30 Main servo motor kW - 3.7, *5.5 Spindle driving method - Direct drive Feed & Magazine X/Y/Z Axes rapid traverse - m/min - 48 ATC capacity/type - Nos./Type 16, *21 Gripper Arm Max. weight of tools - kg - 3 Tool change time - s - 2 Others Dimension (L×W×H) - mm - 1800×2230×2300 Weight - kg - 2600
