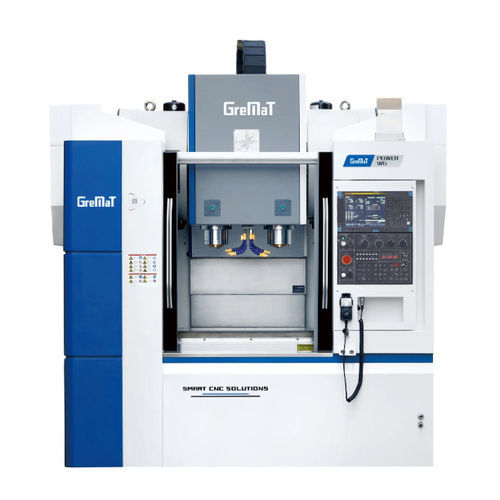

3-axis CNC milling machine Power W6

verticalwith rotary table2-spindle

By twin spindle design, one VMC can cut two workpieces simultaneously which increases the productivity by almost 200%, meanwhile the floor space occupied is the same as one traditional VMC. Reduced investment and maintenance costs The customer can reduce the base machine cost compared to two conventional VMC. Additionally, for ancillary items such as spindle probe, 4th axis rotary table, mist collector etc, only one is required, thereby reducing the total investment cost. Less electricity consumption, Eco-friendly Electricity consumption and operator walking distance are all reduced. This green and environmental protection design philosophy is one of the core structures of our brand promises Table - Table size - mm - 1200 ×450 T slot(width×nos. ×distance) - mm - 18 × 3 × 130 Travel Spindle nose to table - mm - 150-650 Spindle center to column - mm - 450 Distance between two spindle centers - mm - 400 Guideway type - mm - LM ( Roller) Dimension & Weight Power capacity - kVA - 33
