3-axis CNC milling machine GM2011
verticalgantryBT 50

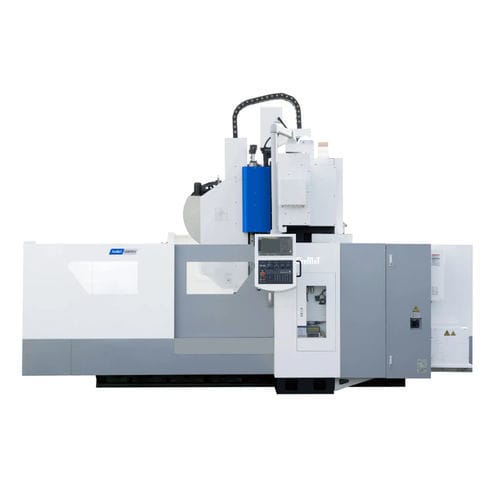

3-axis CNC milling machine - GM2011  - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50
3-axis CNC milling machine - GM2011  - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50
3-axis CNC milling machine - GM2011  - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50 - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry
Spindle mount
BT 50
Number of tool stations
24 tools
Other characteristics
high-rigidity
X travel

2,000 mm
(78.74 in)

Y travel

1,100 mm
(43.31 in)

Z travel

800 mm
(31.5 in)

Rotational speed

6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)

Power

15 kW, 18.5 kW
(20.39 hp, 25.15 hp)

Table load capacity

2,000 kg
(4,409 lb)

Tool weight (max)

15 kg
(33.1 lb)

Weight

18,000 kg
(39,683.21 lb)

Overall length

6,000 mm
(236.2 in)

Overall width

3,650 mm
(143.7 in)

Overall height

3,700 mm
(145.7 in)

Description

Rib reinforced working table restrains vibration while increasing machiningstability. The Finite Element Method ( FEM ) analysis provides optimum machine design andlight-weighted structure advantages while ensuring best machine rigidity. Table Table size - mm - 2000 × 900 T slot(width×nos.×distance) - mm - 22 × 7 × 125 Capacity Spindle nose to table - mm - 120-920 Gantry width - mm - 1150 Guideway type - LM( Roller) Feed - X/Y/Z axis rapid traverse - m/min - 20 Others Power capacity - kVA - 40
