3-axis CNC milling machine GM1580
verticalgantryBT 50

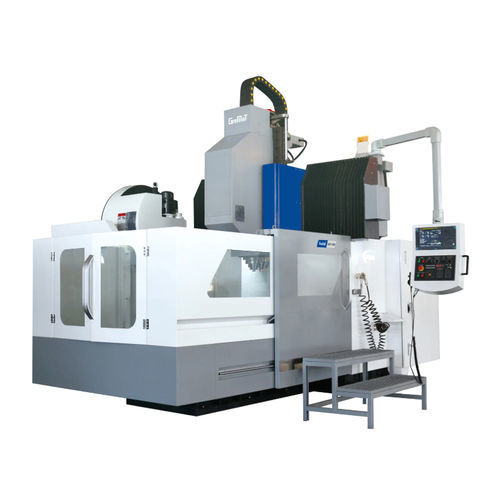

3-axis CNC milling machine - GM1580 - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50
3-axis CNC milling machine - GM1580 - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50
3-axis CNC milling machine - GM1580 - Nanjing Genvan Intelligent Equipment Co. Ltd. - vertical / gantry / BT 50 - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry
Spindle mount
BT 50
Number of tool stations
24 tools
Other characteristics
high-rigidity, high-power
X travel

1,500 mm
(59.06 in)

Y travel

1,000 mm
(39.37 in)

Z travel

620 mm
(24.41 in)

Rotational speed

6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)

Power

15 kW, 18.5 kW
(20.39 hp, 25.15 hp)

Work feed X-axis

20 m/min

Work feed Y-axis

20 m/min

Work feed Z-axis

20 m/min

Table load capacity

1,800 kg
(3,968 lb)

Tool weight (max)

15 kg
(33.1 lb)

Weight

15,000 kg
(33,069.34 lb)

Overall length

4,500 mm
(177.2 in)

Overall width

3,700 mm
(145.7 in)

Overall height

3,700 mm
(145.7 in)

Description

Rib reinforced working table restrains vibration while increasing machining stability. The Finite Element Method ( FEM ) analysis provides optimum machine design and light-weighted structure advantages while ensuring best machine rigidity. Table - Table size - mm - 1600 × 800 T slot(width×nos. ×distance) - mm - 22 × 5 × 140 Capacity - Spindle nose to table - mm - 150-770 Gantry width - mm - 950 Guideway type - LM ( Roller) Feed - Max. feedrate - mm/min - 10000 Others - Power capacity - kVA - 40
