AC servomotor ACSM80N

220 VIP654-pole

Product Overview

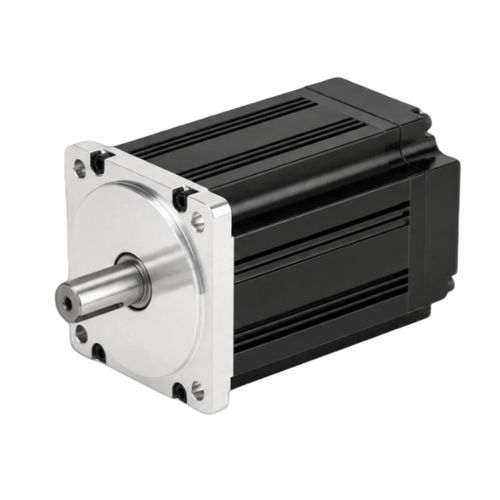

80 mm frame 4-pole AC servo motor ACSM80N-02430B4-MHZ: 750 W, 220 V, 3000 RPM, rated torque 2.39 N·m. Includes 23-bit absolute encoder and IP65 protection; peak torque ratio 3×.

Key Highlights

• Rated Power: 750 W (0.75 kW)
• Rated Speed: 3000 RPM
• Rated Torque: 2.39 N·m
• Peak Torque: 7.1 N·m
• Encoder: 23-bit Absolute
• Protection: IP65

Identifiers

• Part Number: ACSM80N-02430B4-MHZ
• Product Datasheet Reference: ACSM80N-02430B4-MHZ

Electrical & Mechanical Specifications

• Rated Power: 0.75 kW
• Rated Line Voltage: 220 V
• Rated Line Current: 3 A
• Peak Current: 9 A
• Rated Speed: 3000 RPM
• Rated Torque: 2.39 N·m
• Peak Torque: 7.1 N·m
• Back EMF: 48 V/1000 r.min
• Torque Constant: 0.8 N·m/A
• Rotor Inertia: 1.82×10⁻⁴ kg·m²
• Phase Resistance (L-L): 2.88 Ω
• Phase Inductance (L-L): 6.4 mH
• Electrical Time Constant: 2.22 ms
• Weight: 2.9 kg
• Compatible Drives: ACSDP100H-75 / ACSDP100E-75

Encoder & Protection

• Encoder Type: 23-bit Absolute
• Insulation Class: Class B
• Protection Rating: IP65
• Ambient Temperature: -20°C ~ +40°C
• Ambient Humidity: < 90% RH (non-condensing)

Mechanical Dimensions

• Frame Size: 80 mm
• Body Length (w/o brake): 151 mm
• Body Length (w/ permanent magnet brake): 205 mm
• Body Length (w/ electromagnetic brake): 191 mm

Torque-Speed Curve
Torque-speed characteristic image available for the ACSM80N-02430B4-MHZ.

Technical specifications

• Model series: ACSM80N series
• Rated Voltage: 220 V
• Peak Current: 9 A
• Rated Line Current: 3 A
• Back EMF: 48 V/1000 r.min
• Torque Constant: 0.8 N·m/A
• Rotor Inertia: 1.82×10⁻⁴ kg·m²
• Phase Resistance (L-L): 2.88 Ω
• Phase Inductance (L-L): 6.4 mH
• Electrical Time Constant: 2.22 ms
