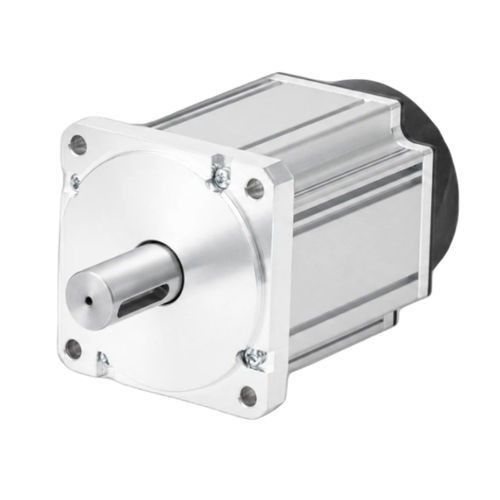

AC servomotor ACSM80B

220 V5-polefor industrial applications

Product Overview
80 mm frame, 5-pole AC servo motor, 750 W, 220 V. Rated speed 3000 RPM, rated torque 2.39 N·m and maximum speed up to 6000 RPM. Fitted with a 17-bit absolute encoder for precise position feedback. Intended for industrial motion control applications.

Key Highlights

• Rated Power: 750 W
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Torque: 2.39 N·m
• Encoder: 17-bit absolute

Part Information
Part Number: ACSM80B-02430A6-TJA

Electrical & Mechanical Specifications
Rated Power: 0.75 kW
Rated Voltage: 220 V
Rated Torque: 2.39 N·m
Peak Torque: 7.17 N·m
Rated Current: 4.5 Arms
Peak Current: 13.5 Arms
Rated Speed: 3000 RPM
Max Speed: 6000 RPM
Torque Constant: 0.53 N·m/A
Back EMF: 32.8 V/Krpm
Phase Resistance (L-L): 1.2 Ω
Phase Inductance (L-L): 4.2 mH
Rotor Inertia: 1.5×10⁻⁴ kg·m²
Pole Pairs: 5
Compatible Drive: ACSDP100H-75 / ACSDP100E-75

Encoder & Protection
Encoder Type: 17-bit Absolute
Insulation Class: Class F

Mechanical Dimensions
Frame Size: 80 mm
Body Length (without brake): 96 mm
Body Length (with brake): 133 mm

Torque-Speed Curve
Torque-speed curve and mechanical drawing provided for performance and mounting reference.

Technical Specifications

• Frame: 80 mm
• Poles: 5-pole
• Rated Power: 750 W (0.75 kW)
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Rated Torque: 2.39 N·m
• Peak Torque: 7.17 N·m
• Rated Current: 4.5 Arms
• Peak Current: 13.5 Arms
• Torque Constant: 0.53 N·m/A
• Back EMF: 32.8 V/Krpm
• Phase Resistance (L-L): 1.2 Ω
• Phase Inductance (L-L): 4.2 mH
• Rotor Inertia: 1.5×10⁻⁴ kg·m²
• Pole Pairs: 5
• Encoder: 17-bit absolute encoder
• Insulation Class: F
• Compatible Drives: ACSDP100H-75, ACSDP100E-75
• Body Length (without brake): 96 mm; with brake: 133 mm
