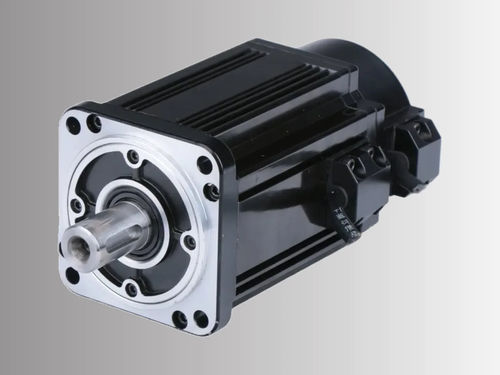

AC servomotor ACSM130B-07725A6-MH

220 Vwith coderclosed-loop

Product Overview
130 mm frame AC economy servo motor, model ACSM130B-07725A6-MH. Rated power 2.0 kW with rated torque 7.7 N·m at 2500 RPM. Designed for industrial motion control applications requiring a compact 130 mm frame and a 17-bit absolute encoder for precise positioning.

Key Highlights

• Rated Power: 2.0 kW
• Rated Speed: 2500 RPM
• Rated Torque: 7.7 N·m
• Peak Torque: 22 N·m
• Encoder: 17-bit absolute

Electrical & Mechanical Specifications
Rated Power: 2.0 kW
Rated Line Voltage: 220 V
Rated Line Current: 7.5 A
Rated Speed: 2500 RPM
Rated Torque: 7.7 N·m
Peak Torque: 22 N·m
Back EMF: 68 V/1000 r.min
Torque Constant: 1.03 N·m/A
Rotor Inertia: 1.53×10⁻³ kg·m²
Phase Resistance (L-L): 1.01 Ω
Phase Inductance (L-L): 2.94 mH
Electrical Time Constant: 2.91 ms
Compatible Drive: ACSDP200H / ACSDP200E

Encoder & Protection
Encoder Type: 17-bit absolute
Insulation Class: Class B

Mechanical Dimensions
Frame Size: 130 mm
Body Length (without brake): 192 mm

Additional Visuals
Torque-speed curve and mechanical drawing available on the product page.

Technical Specifications

• Model / Series: ACSM130B series
• Part Number: ACSM130B-07725A6-MH
• Rated Power: 2000 W
• Rated Voltage: 220 V
• Rated Current: 7.5 A
• Rated Speed: 2500 RPM
• Rated Torque: 7.7 N·m
• Peak Torque: 22 N·m
• Encoder: 17-bit absolute
• Back EMF: 68 V/1000 r.min
• Torque Constant: 1.03 N·m/A
• Rotor Inertia: 1.53×10⁻³ kg·m²
• Phase Resistance (L-L): 1.01 Ω
• Phase Inductance (L-L): 2.94 mH
• Electrical Time Constant: 2.91 ms
• Compatible Drives: ACSDP200H / ACSDP200E
• Frame Size: 130 mm
• Body Length (without brake): 192 mm
