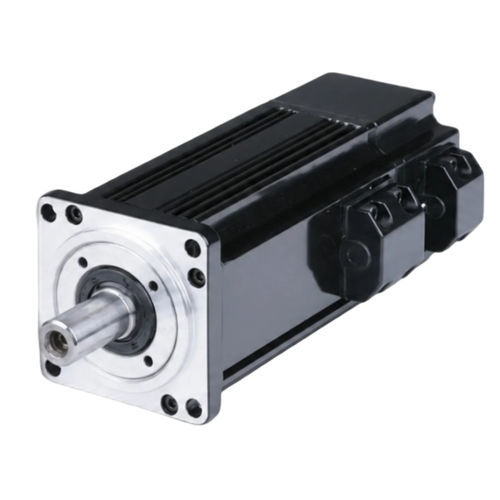

AC servomotor ACSM40N220 VIP654-pole
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V
- Protection class
- IP65
- Number of poles
- 4-pole
- Applications
- with built-in encoder
- Other characteristics
- high-resolution, with built-in encoder, servo-driven
- Power
0.1 kW
(0.14 hp)- Intensity
0.6 A
- Torque
Max.: 0.64 Nm
(0.47204 ft.lb)Min.: 0.32 Nm
(0.23602 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
40 mm
(1.57 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
Product Overview
40 mm frame 4-pole AC servo motor, rated 100 W at 220 V, 3000 RPM, rated torque 0.32 N·m. Equipped with a 23-bit absolute encoder, IP65 protection, and a peak torque ratio of 2:1.
Key Highlights
Part Number & Basic Info
Electrical & Mechanical Specifications
Rated Power: 0.1 kW
Rated Line Voltage: 220 V
Rated Line Current: 0.6 A
Rated Speed: 3000 RPM
Rated Torque: 0.32 N·m
Peak Torque: 0.64 N·m
Back EMF: 32.8 V/1000 r.min
Torque Constant: 0.53 N·m/A
Rotor Inertia: 0.051×10⁻⁴ kg·m²
Phase Resistance (L-L): 34 Ω
Phase Inductance (L-L): 40 mH
Electrical Time Constant: 1.18 ms
Weight: 0.47 kg
Compatible Drive: ACSDP100H-40 / ACSDP100E-40
Encoder & Protection
Encoder Type: 23-bit Absolute
Insulation Class: Class B
Protection Rating: IP65
Ambient Temperature: -20°C ~ +40°C
Ambient Humidity: < 90% RH (non-condensing)
Mechanical Dimensions
Frame Size: 40 mm
Body Length (w/o brake): 90 mm
Body Length (w/ permanent magnet brake): 124 mm
Other Product Media
Torque-speed curve image and mechanical drawing are available for this ACSM40N series product.
Technical specifications
40 mm frame 4-pole AC servo motor, rated 100 W at 220 V, 3000 RPM, rated torque 0.32 N·m. Equipped with a 23-bit absolute encoder, IP65 protection, and a peak torque ratio of 2:1.
Key Highlights
- Rated Power: 100 W
- Rated Speed: 3000 RPM
- Rated Torque: 0.32 N·m
- Peak Torque: 0.64 N·m
- Encoder: 23-bit Absolute
- Protection: IP65
Part Number & Basic Info
- Part Number: ACSM40N-00330B4-MHZ
- Rated Voltage: 220 V
- Rated Power: 100 W (0.1 kW)
Electrical & Mechanical Specifications
Rated Power: 0.1 kW
Rated Line Voltage: 220 V
Rated Line Current: 0.6 A
Rated Speed: 3000 RPM
Rated Torque: 0.32 N·m
Peak Torque: 0.64 N·m
Back EMF: 32.8 V/1000 r.min
Torque Constant: 0.53 N·m/A
Rotor Inertia: 0.051×10⁻⁴ kg·m²
Phase Resistance (L-L): 34 Ω
Phase Inductance (L-L): 40 mH
Electrical Time Constant: 1.18 ms
Weight: 0.47 kg
Compatible Drive: ACSDP100H-40 / ACSDP100E-40
Encoder & Protection
Encoder Type: 23-bit Absolute
Insulation Class: Class B
Protection Rating: IP65
Ambient Temperature: -20°C ~ +40°C
Ambient Humidity: < 90% RH (non-condensing)
Mechanical Dimensions
Frame Size: 40 mm
Body Length (w/o brake): 90 mm
Body Length (w/ permanent magnet brake): 124 mm
Other Product Media
Torque-speed curve image and mechanical drawing are available for this ACSM40N series product.
Technical specifications
- Series: ACSM40N series
- Model / Part Number: ACSM40N-00330B4-MHZ
- Rated Power: 100 W (0.1 kW)
- Rated Voltage: 220 V
- Rated Current: 0.6 A
- Rated Speed: 3000 RPM
- Rated Torque: 0.32 N·m
- Peak Torque: 0.64 N·m
- Back EMF: 32.8 V/1000r.min
- Torque Constant: 0.53 N·m/A
- Rotor Inertia: 0.051×10⁻⁴ kg·m²
- Phase Resistance (L-L): 34 Ω
- Phase Inductance (L-L): 40 mH
- Electrical Time Constant: 1.18 ms
- Weight: 0.47 kg
- Encoder: 23-bit Absolute
- Insulation Class: Class B
- Protection Rating: IP65
- Operating Ambient Temperature: -20°C to +40°C
- Ambient Humidity: < 90% RH (non-condensing)
- Frame Size: 40 mm
- Body Length (w/o brake): 90 mm
- Body Length (w/ permanent magnet brake): 124 mm
- Compatible Drives: ACSDP100H-40, ACSDP100E-40
