AC servomotor ACSM130B-10025A6-MH

220 Vhigh-precisionwith built-in encoder

Product Overview

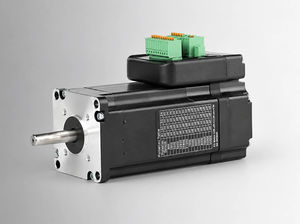

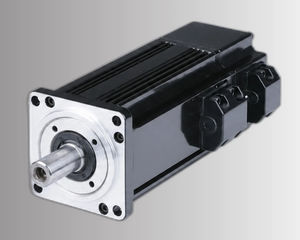

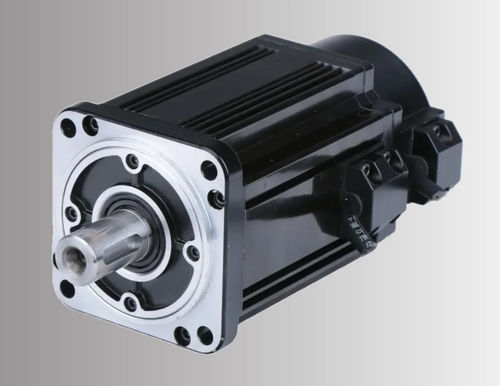

130 mm frame AC servo motor, model ACSM130B-10025A6-MH. Rated 2.6 kW, 220 V, 2500 RPM with 10 N·m nominal torque and 25 N·m peak torque. Integrated 17-bit absolute encoder for precise position feedback. Suited for industrial motion control and automation systems.

Key Highlights

• Rated Power: 2.6 kW
• Rated Speed: 2500 RPM
• Rated Torque: 10 N·m
• Peak Torque: 25 N·m (2.5×)
• Encoder: 17-bit absolute

Basic Product Details

• Model / Series: ACSM130B series
• Part Number: ACSM130B-10025A6-MH
• Compatible Drives: ACSDP200H / ACSDP200E

Electrical & Mechanical Specifications
Rated Power: 2.6 kW
Rated Line Voltage: 220 V
Rated Line Current: 10 A
Rated Speed: 2500 RPM
Rated Torque: 10 N·m
Peak Torque: 25 N·m
Back EMF: 70 V/1000 r.min
Torque Constant: 1.0 N·m/A
Rotor Inertia: 1.94×10⁻³ kg·m²
Phase Resistance (L-L): 0.73 Ω
Phase Inductance (L-L): 2.45 mH
Electrical Time Constant: 3.36 ms
Compatible Drive: ACSDP200H / ACSDP200E

Encoder & Protection
Encoder Type: 17-bit absolute encoder
Insulation Class: Class B

Mechanical Dimensions
Frame Size: 130 mm
Body Length (without brake): 209 mm

Other Visuals
Torque-speed curve (product-specific) and mechanical drawing (series) available as images on the product page.

Technical Specifications

• Part Number: ACSM130B-10025A6-MH
• Frame Size: 130 mm
• Rated Power: 2.6 kW (2600 W)
• Rated Voltage: 220 V
• Rated Current: 10 A
• Rated Speed: 2500 RPM
• Rated Torque: 10 N·m
• Peak Torque: 25 N·m (2.5×)
• Encoder: 17-bit absolute
• Back EMF: 70 V/1000 r.min
• Torque Constant: 1.0 N·m/A
• Rotor Inertia: 1.94×10⁻³ kg·m²
• Phase Resistance (L-L): 0.73 Ω
• Phase Inductance (L-L): 2.45 mH
• Electrical Time Constant: 3.36 ms
• Insulation Class: Class B
• Compatible Drives: ACSDP200H / ACSDP200E
• Body Length (without brake): 209 mm
