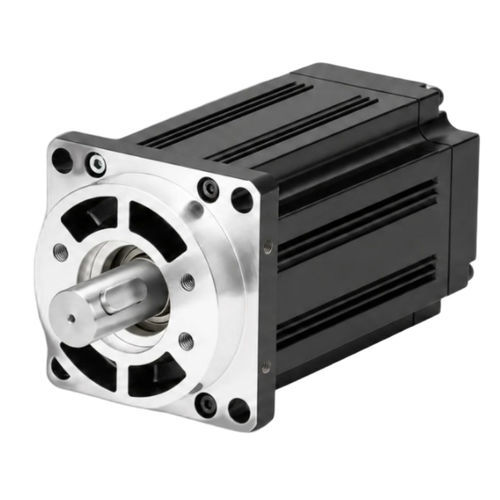

AC servomotor ACSM130N

220 V4-polewith built-in encoder

Product Overview
130 mm frame, 4-pole AC servo motor for industrial motion control applications. Rated power 2.6 kW, rated voltage 220 V, rated speed 2500 RPM, rated torque 10 N·m. Equipped with 23-bit absolute encoder and 2.5× peak-to-rated torque ratio.

Key Highlights

• Rated Power: 2.6 kW
• Rated Speed: 2500 RPM
• Rated Torque: 10 N·m
• Peak Torque: 25 N·m
• Encoder: 23-bit absolute

Identifiers
Part Number: ACSM130N-10025B4-MH
Rated Power: 2600 W
Rated Voltage: 220 V
Rated Speed: 2500 RPM
Rated Torque: 10 N·m
Peak Torque: 25 N·m

Electrical & Mechanical Specifications
Rated Power: 2.6 kW
Rated Line Voltage: 220 V
Rated Line Current: 10 A
Rated Speed: 2500 RPM
Rated Torque: 10 N·m
Peak Torque: 25 N·m
Back EMF: 70 V/1000 r.min
Torque Constant: 1.0 N·m/A
Rotor Inertia: 1.94×10⁻³ kg·m²
Phase Resistance (L-L): 0.73 Ω
Phase Inductance (L-L): 2.45 mH
Electrical Time Constant: 3.36 ms
Weight: 9.8 kg
Compatible Drive: ACSDP200H / ACSDP200E

Encoder & Protection
Encoder Type: 23-bit absolute encoder
Insulation Class: Class B
Ambient Temperature: -20°C ~ +40°C
Ambient Humidity: < 90% RH (non-condensing)

Mechanical Dimensions
Frame Size: 130 mm
Body Length (without brake): 209 mm
Body Length (with permanent magnet brake): 279 mm
Body Length (with electromagnetic brake): 290 mm

Additional Resources
Torque-speed curve: image available in product details
Mechanical drawing: image available (ACSM130N Series)

Technical specifications

• Model / Series: ACSM130N Series
• Part Number: ACSM130N-10025B4-MH
• Rated Power: 2.6 kW (2600 W)
• Rated Voltage: 220 V
• Rated Speed: 2500 RPM
• Rated Torque: 10 N·m
• Peak Torque: 25 N·m
• Encoder: 23-bit absolute
• Weight: 9.8 kg
• Frame Size: 130 mm
• Compatible Drive: ACSDP200H / ACSDP200E
• Insulation Class: Class B
• Ambient Temperature: -20°C ~ +40°C
• Phase Resistance (L-L): 0.73 Ω
• Phase Inductance (L-L): 2.45 mH
• Rotor Inertia: 1.94×10⁻³ kg·m²
• Torque Constant: 1.0 N·m/A
• Back EMF: 70 V/1000 r.min
