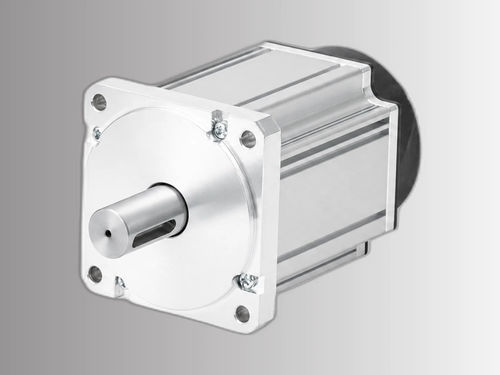

AC servomotor ACSM80B-03230A6-TJA

220 V5-polehigh-resolution

Product Summary
80 mm frame, 5-pole AC servo motor model ACSM80B-03230A6-TJA. Rated power 1.0 kW, rated voltage 220 V, rated speed 3000 RPM and rated torque 3.18 N·m. Integrated 17-bit absolute encoder; maximum speed 6000 RPM.

Key Highlights

• Rated Power: 1.0 kW
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Torque: 3.18 N·m
• Encoder: 17-bit absolute

Basic Information

• Part Number: ACSM80B-03230A6-TJA
• Rated Power: 1000 W
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Torque: 3.18 N·m
• Peak Torque: 7.96 N·m

Electrical & Mechanical Specifications

• Rated Current: 5.8 Arms
• Peak Current: 15.6 Arms
• Torque Constant: 0.55 N·m/A
• Back EMF: 32.5 V/Krpm
• Phase Resistance (L-L): 1.17 Ω
• Phase Inductance (L-L): 3.9 mH
• Rotor Inertia: 1.55×10⁻⁴ kg·m²
• Pole Pairs: 5
• Compatible Drive: ACSDP100H-75 / ACSDP100E-75

Encoder & Protection

• Encoder Type: 17-bit Absolute
• Insulation Class: Class F

Mechanical Dimensions

• Frame Size: 80 mm
• Body Length (without brake): 111 mm

Additional Technical Visuals
Torque-speed curve and mechanical drawing are provided as product technical images for performance and mounting details.

Technical specifications

• Frame: 80 mm
• Poles: 5-pole design
• Rated power: 1.0 kW (1000 W)
• Rated voltage: 220 V
• Rated speed: 3000 RPM
• Maximum speed: 6000 RPM
• Rated torque: 3.18 N·m
• Peak torque: 7.96 N·m
• Rated current: 5.8 Arms
• Peak current: 15.6 Arms
• Torque constant: 0.55 N·m/A
• Back EMF: 32.5 V/Krpm
• Phase resistance (L-L): 1.17 Ω
• Phase inductance (L-L): 3.9 mH
• Rotor inertia: 1.55×10⁻⁴ kg·m²
• Pole pairs: 5
• Encoder: 17-bit absolute
• Insulation class: F
• Compatible drives: ACSDP100H-75, ACSDP100E-75
