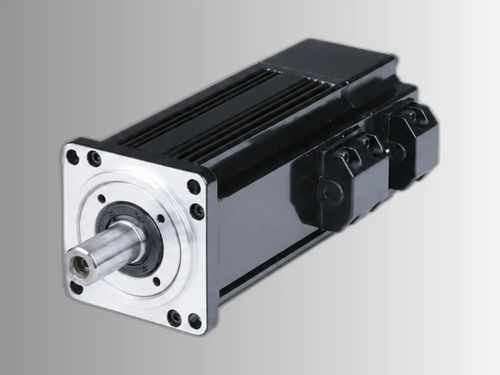

AC servomotor ACSM60N-01930B4-MHZ

220 Vwith coderIP65

Product Overview
60 mm frame, 4-pole AC servo motor rated 600 W (0.6 kW), 220 V, 3000 RPM with rated torque 1.91 N·m. Equipped with 23-bit absolute encoder, IP65 protection and 3× peak torque ratio (peak 5.73 N·m).

Key Highlights

• Rated Power: 600 W
• Rated Speed: 3000 RPM
• Rated Torque: 1.91 N·m
• Peak Torque: 5.73 N·m
• Encoder: 23-bit Absolute
• Protection: IP65

Quick Specs

• Part Number: ACSM60N-01930B4-MHZ
• Rated Power: 600 W
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Rated Torque: 1.91 N·m
• Peak Torque: 5.73 N·m

Electrical & Mechanical Specifications
Rated Power: 0.6 kW
Rated Line Voltage: 220 V
Rated Line Current: 3.5 A
Rated Speed: 3000 RPM
Rated Torque: 1.91 N·m
Peak Torque: 5.73 N·m
Back EMF: 34 V/1000 r.min
Torque Constant: 0.55 N·m/A
Rotor Inertia: 0.39×10⁻⁴ kg·m²
Phase Resistance (L-L): 1.39 Ω
Phase Inductance (L-L): 10.7 mH
Electrical Time Constant: 5.5 ms
Weight: 2.07 kg
Compatible Drive: ACSDP100H-40 / ACSDP100E-40

Encoder & Protection
Encoder Type: 23-bit Absolute
Insulation Class: Class F
Protection Rating: IP65
Ambient Temperature: -20°C ~ +40°C
Ambient Humidity: < 90% RH (non-condensing)

Mechanical Dimensions
Frame Size: 60 mm
Body Length (w/o brake): 169 mm
Body Length (w/ permanent magnet brake): 217 mm

Torque-Speed Curve
Torque-speed curve image provided on product page (illustrative performance curve for ACSM60N-01930B4-MHZ).

Mechanical Drawing
Mechanical drawing image provided for ACSM60N Series (dimensional and mounting details).

Features / Technical specifications

• Frame: 60 mm
• Poles: 4-pole
• Rated Power: 600 W (0.6 kW)
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Rated Torque: 1.91 N·m
• Peak Torque: 5.73 N·m (3× peak torque ratio)
• Encoder: 23-bit absolute encoder
• Protection: IP65
• Back EMF: 34 V/1000 r.min
• Torque Constant: 0.55 N·m/A
• Phase Resistance (L-L): 1.39 Ω
• Phase Inductance (L-L): 10.7 mH
• Electrical Time Constant: 5.5 ms
• Rotor Inertia: 0.39×10⁻⁴ kg·m²
• Weight: 2.07 kg
• Compatible Drives: ACSDP100H-40, ACSDP100E-40
• Operating Ambient: -20°C to +40°C, <90% RH non-condensing
