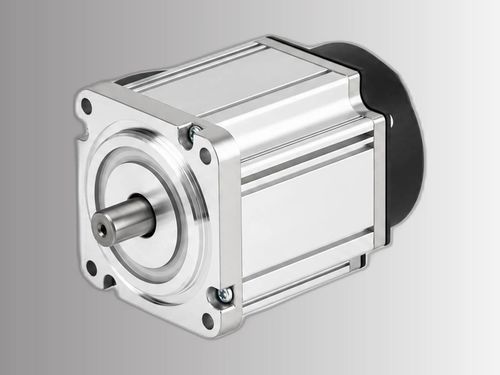

AC servomotor ACSM60B-01330A6-TJA

220 V5-polehigh-resolution

Product Overview
60 mm frame, 5-pole AC servo motor ACSM60B-01330A6-TJA rated 400 W at 220 V, delivering 1.27 N·m rated torque and up to 6000 RPM. Equipped with a 17-bit absolute encoder and compatible with ACSDP100H-40 / ACSDP100E-40 drives.

Key Highlights

• Rated Power: 400 W (0.4 kW)
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Torque: 1.27 N·m
• Encoder: 17-bit Absolute

Product Information

• Part Number: ACSM60B-01330A6-TJA
• Rated Voltage: 220 V
• Rated Current: 2.5 A (typical)
• Peak Current: 7.5 A
• Compatible Drives: ACSDP100H-40 / ACSDP100E-40

Electrical & Mechanical Specifications

• Rated Power — 0.4 kW
• Rated Voltage — 220 V
• Rated Torque — 1.27 N·m
• Peak Torque — 3.81 N·m
• Rated Current — 2.5 A
• Peak Current — 7.5 A
• Rated Speed — 3000 RPM
• Max Speed — 6000 RPM
• Torque Constant — 0.5 N·m/A
• Back EMF — 31.2 V/Krpm
• Phase Resistance (L-L) — 3.5 Ω
• Phase Inductance (L-L) — 5.8 mH
• Rotor Inertia — 0.52×10⁻⁴ kg·m²
• Pole Pairs — 5

Encoder & Protection

• Encoder Type — 17-bit Absolute
• Insulation Class — Class F

Mechanical Dimensions

• Frame Size — 60 mm
• Body Length (w/o brake) — 90 mm
• Body Length (w/ brake) — 120 mm

Additional Visuals
Includes torque-speed curve and mechanical drawing images relevant to the ACSM60B series.

Technical Characteristics

• Frame: 60 mm, 5-pole design
• Rated Power: 400 W (0.4 kW)
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM; Max Speed: 6000 RPM
• Rated Torque: 1.27 N·m; Peak Torque: 3.81 N·m
• Rated Current: 2.5 A; Peak Current: 7.5 A
• Torque Constant: 0.5 N·m/A
• Back EMF: 31.2 V/Krpm
• Phase Resistance (L-L): 3.5 Ω; Phase Inductance (L-L): 5.8 mH
• Rotor Inertia: 0.52×10⁻⁴ kg·m²
• Pole Pairs: 5
• Encoder: 17-bit absolute
• Insulation Class: F
• Compatible Drives: ACSDP100H-40, ACSDP100E-40
