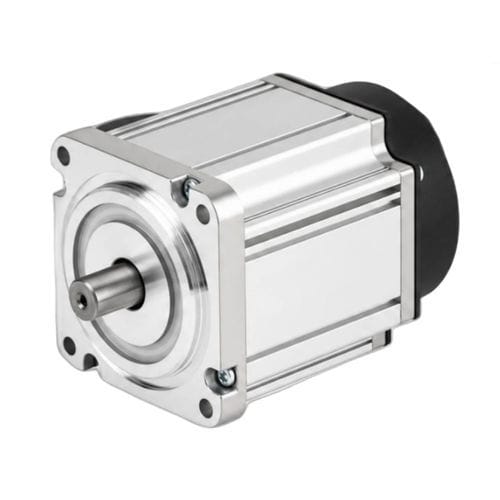

AC servomotor ACSM60B

220 V5-polehigh-resolution

Product overview
60 mm frame, 5-pole AC servo motor rated 200 W at 220 V. Features a 17-bit absolute encoder, rated speed 3000 RPM and maximum speed 6000 RPM. Suitable for compact industrial motion systems where precise position feedback is required.

Key highlights

• Rated Power: 200 W (0.2 kW)
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Rated Torque: 0.64 N·m (Peak 1.92 N·m)
• Encoder: 17-bit absolute

Product identifiers
Part number: ACSM60B-00630A6-TJA
Frame size: 60 mm
Poles: 5-pole design

Electrical & mechanical specifications

• Rated Power: 0.2 kW
• Rated Voltage: 220 V
• Rated Current: 1.6 A (Peak 4.8 A)
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Rated Torque: 0.64 N·m
• Peak Torque: 1.92 N·m
• Torque Constant: 0.4 N·m/A
• Back EMF: 29.3 V/Krpm
• Phase Resistance (L-L): 8.9 Ω
• Phase Inductance (L-L): 13.5 mH
• Rotor Inertia: 0.3×10⁻⁴ kg·m²
• Pole Pairs: 5
• Compatible Drives: ACSDP100H-40, ACSDP100E-40

Encoder & protection

• Encoder type: 17-bit absolute encoder for position feedback
• Insulation class: F

Mechanical dimensions

• Frame size: 60 mm
• Body length (without brake): 72 mm
• Body length (with brake): 102 mm

Torque-speed curve
Torque-speed curve available for performance reference — consult product images/diagrams for continuous and peak regions.

Mechanical drawing
Detailed mechanical drawing available for the ACSM60B series (see product images/diagrams) for mounting and integration measurements.

Typical applications

• Compact industrial robotics and cobots
• CNC indexing and small-axis control
• Packaging machines and pick-and-place units
• Medical devices and laboratory automation requiring compact precise motion

Technical specifications

• Frame: 60 mm
• Poles: 5
• Rated Power: 200 W (0.2 kW)
• Rated Voltage: 220 V
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Rated Torque: 0.64 N·m
• Peak Torque: 1.92 N·m
• Rated Current: 1.6 A
• Peak Current: 4.8 A
• Torque Constant: 0.4 N·m/A
• Back EMF: 29.3 V/Krpm
• Phase Resistance (L-L): 8.9 Ω
• Phase Inductance (L-L): 13.5 mH
• Rotor Inertia: 0.3×10⁻⁴ kg·m²
• Pole Pairs: 5
• Encoder: 17-bit absolute
• Insulation Class: F
• Compatible Drives: ACSDP100H-40, ACSDP100E-40
• Typical part number: ACSM60B-00630A6-TJA
