Industrial vacuum cleaner DGVL75 ACD

drycombustible dustthree-phase

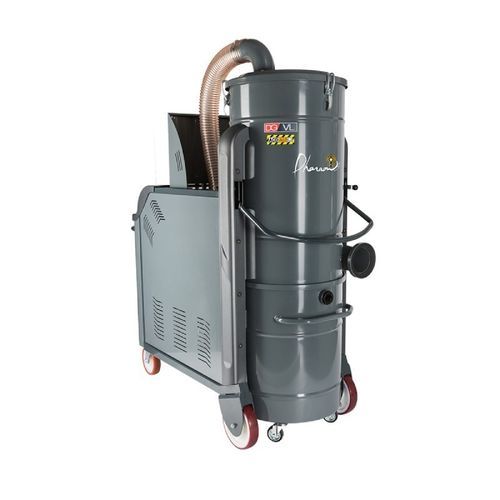

The DGVL75 ACD is an industrial vacuum cleaner designed for the safe extraction of combustible and toxic dust in non-ATEX areas with a high risk of particle dispersion. Compliant with ACD regulations (IEC 60335-2-69), it meets the needs of industries such as woodworking, construction, food processing, or aerospace, where safety, reliability, and compliance are essential. Equipped with a maintenance-free 7.5 kW three-phase motor with a silent side channel blower, it allows for continuous 24/7 use. It develops a peak vacuum of 4,500 mmH₂O and a continuous vacuum of 3,200 mmH₂O, with an air flow rate of 750 m³/h, ideal for extracting dense, abrasive, or long-distance dust. The IP55 motor is protected by an integrated safety valve. The two-stage filtration system relies on an antistatic pocket filter category M 1 μ (surface area of 70,000 cm²), combined with a standard HEPA H14 absolute filter (52,000 cm²), ensuring 99.995% efficiency on particles down to 0.18 microns. The tangential inlet with integrated cyclone allows for pre-separation of dust, reducing filter clogging. A vacuum gauge with a light indicator signals the clogging level in real-time. The semi-automatic filter cleaning system, powered by an onboard compressor, cleans the filter with pneumatic pulses, optimizing filter life and maintaining constant suction performance without machine downtime. The 160-liter collection bin is mounted on wheels, easily detachable, and can be used with a direct bagging system to avoid contact with collected dust. The unit is mounted on an epoxy-painted steel structure, with a push handle and industrial wheels, ensuring maneuverability and stability on all types of floors. Forklift slots are integrated to facilitate movement. The DGVL75 ACD is designed for environments where it is imperative to prevent risks associated with combustible dust while ensuring high filtration levels and uninterrupted operation. It represents an ideal solution for companies seeking a reliable industrial vacuum cleaner, compliant with ACD standards, ready to tackle the most demanding production conditions with safety, performance, and autonomy. - Suitable for production lines - Semi-automatic filter cleaning system - Three-phase motor suitable for continuous use - Forklift slots ensuring mobility **Technical Specifications:** - Max vacuum (mmH²O): 4500 - Max airflow (m³/h): 750 - Capacity (L): 160 - Noise level (dB): 72 - Weight (kg): 360 - Vacuum family: Industrial - ATEX zone: Non-ATEX - Air inlet (mm): 120
