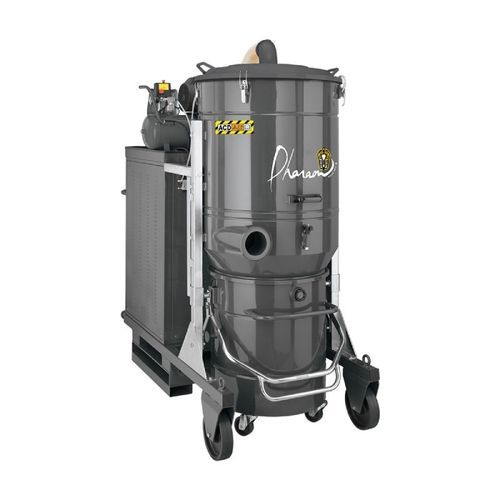

Industrial vacuum cleaner DG300 HD PN ACD

drycombustible dustthree-phase

Overview
The DG300 HD PN ACD is a three-phase, high-capacity industrial dust extractor designed for handling combustible dusts in heavy industrial environments. Built to meet ACD regulation (IEC 60335-2-69) for non-ATEX areas, it ensures secure dust collection with integrated protective devices.

Main benefits

• High flow, high power and very high vacuum for stations with strong dust emissions.
• ACD compliance for combustible dusts (enhanced safety for non-ATEX environments).
• Efficient automatic PN pneumatic pulse-cleaning system that cleans filters without stopping the installation.
• Large autonomy with 220 L receptacle, suited to industrial cycles and easy to empty (castors and forklift pockets).

Filtration and components

• Main filtration system: four antistatic cartridge filters, category M, total cartridge area indicated in technical sheet: 260000 cm².
• Integrated absolute HEPA H14 filter of 103500 cm² with declared efficiency 99.995% down to 0.18 µm.
• Tangential inlet and integrated cyclone for pre-separation and reduced direct contact of particles with filter media.
• Vacuum gauge with indicator light for real-time monitoring of clogging.
• Integrated safety valve for protection against accidental overpressure.

Motorization and construction

• 25 kW three-phase motor, IP65, without mechanical transmission, designed for continuous 24/7 operation.
• Robust epoxy-painted steel frame designed for reduced maintenance (maintenance-free design concept).

Performance

• Maximum vacuum: 4000 mmH₂O.
• Maximum flow: 2 050 m³/h.

Use and applications
Intended for fixed installations, long-distance extraction networks and industrial stations with high dust emissions: steelworks, foundries, recycling platforms, mechanical industries and sectors requiring elevated sanitary safety or handling combustible dusts.

Additional remarks
Optimized emptying and handling thanks to the 220 L receptacle mounted on castors and equipped with forklift pockets. The compressed-air pulse-cleaning system maintains constant suction and extends filter life.

Characteristics / technical specifications

• Model: DG300 HD PN ACD
• Weight: 825 (value shown in technical sheet)
• Dimensions (L x H x D indicated): 95 x 180 x 220h
• Maximum vacuum (mmH₂O): 4000
• Maximum flow (m³/h): 2050
• Receptacle capacity: 220 L
• Sound level (dB): 78
• Filter surface (listed value): 120000 cm²
• Total cartridge surface (detailed in description): 260000 cm² (4 antistatic cartridges category M)
• Absolute filter: HEPA H14 – 103500 cm² – efficiency 99.995% down to 0.18 µm
• Voltage: 400 V
• Air inlet (mm): 120
• Motor: 25 kW, IP65, without transmission
• Regulation / compliance: ACD (IEC 60335-2-69) for combustible dusts (non-ATEX areas)
