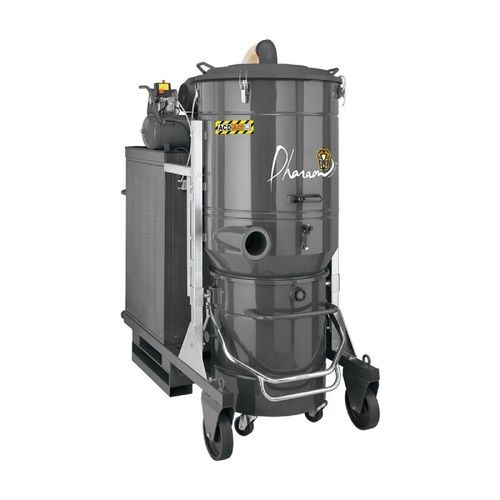

Industrial vacuum cleaner DG300 SE ACD

drydustcombustible dust

Overview
The DG300 SE ACD is a three-phase industrial vacuum designed for heavy-duty industrial applications, notably combustible dust handling. Compliant with ACD regulation (IEC 60335-2-69) and intended for non-ATEX zones, it combines high vacuum, large storage capacity and high-performance filtration.

Main features

• 20 kW motor with IP65 protection
• Side-channel vacuum pump in aluminum cast, without transmission (quiet, low maintenance)
• Maximum vacuum: 4 400 mmH₂O
• Airflow: 1 100 m3/h
• 220 L tank on casters, removable, option for secure bagging
• Two-stage filtration: antistatic polyester pocket filter (category M) surface 120 000 cm² and HEPA H14 filter surface 103 500 cm² (retention 99.995% down to 0.18 μm)
• Automatic filter cleaning by timed pneumatic cylinder powered by onboard compressor
• Vacuum gauge with visual indicator for clogging monitoring
• Vacuum relief valve to protect the motor
• Tangential inlet with cyclonic effect for optimized dust separation
• Epoxy-painted steel construction, mobile industrial chassis (industrial wheels, push handles, forklift pockets)

Usage and benefits

• Ideal for intensive use in industrial environments
• High vacuum suitable for deep suction and complex installations
• Very large filter surface reducing maintenance frequency
• Integrated HEPA filtration ensuring a high level of operator safety
• Automatic de-dusting system allowing continuous operation

Characteristics / technical specifications

• Model: DG300 SE ACD
• Dimensions: 95 x 180 x 220 h (cm)
• Max vacuum (mmH₂O): 4 400
• Max airflow (m3/h): 1 100
• Capacity (Lt): 220
• Noise level (dB): 78
• Filter surface (cm²): 120 000 (antistatic polyester pocket filter)
• HEPA H14 filter surface: 103 500 cm² (retention 99.995% down to 0.18 μm)
• Voltage (Volts): 400
• Power (W): 20 000 (20 kW)
• Motor protection: IP65
• Pump: side-channel vacuum pump in aluminum cast (without transmission)
• Filter cleaning: timed pneumatic cylinder + onboard compressor
• Clogging monitoring: vacuum gauge with visual indicator
• Compliance: ACD regulation (IEC 60335-2-69) — designed for non-ATEX zones
