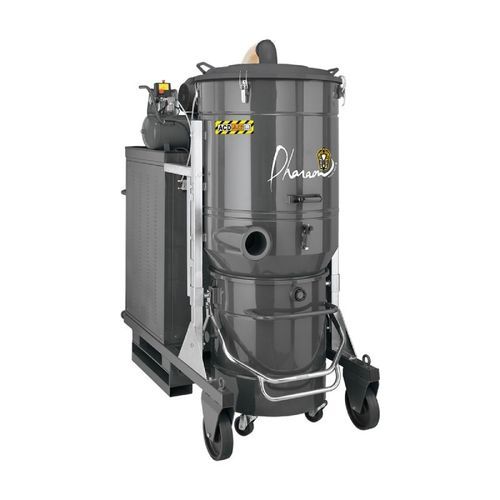

Industrial vacuum cleaner DG300 SE PN ACD

drydustcombustible dust

Summary
The DG300 SE PN ACD is a three-phase industrial vacuum designed for high-safety collection of combustible dusts in non-ATEX environments. Compliant with ACD regulations (IEC 60335-2-69), it provides a reliable solution where high filtration performance and operational safety are required.

Main features

• High vacuum for demanding applications.
• Designed for intensive use.
• Very large filter surface area.
• Industrial, mobile construction for harsh environments.

Designation and dedusting system
Model equipped with automatic cleaning by pneumatic cylinder driven by an onboard compressor (PN version) allowing regular cleaning of cartridge filters without production stoppage. This system ensures continuous suction, extends filter life and reduces maintenance needs compared with the non-PN version that requires manual interventions.

Performance
Motor power 20 kW with maximum vacuum values indicated in documentation: peak 5,000 mmH₂O and 4,400 mmH₂O continuous. Airflow up to 1,100 m³/h, suitable for centralised networks, workshop cleaning and direct capture on machines.

Filtration
Two-level filtration: four antistatic M-class cartridges (total cartridge surface 260,000 cm²) combined with a HEPA H14 filter (surface 103,500 cm²) capable of retaining particles down to 0.18 µm. Tangential inlet with integrated cyclone for mechanical pre-separation and reduced wear on filter media. Integrated luminous vacuum gauge for real-time clogging monitoring.

Tank, mobility and construction
220 L detachable tank on castors. Epoxy-painted steel frame, reinforced industrial wheels, ergonomic handle and forklift pockets for easy handling and logistic integration on site.

Applications
Designed for collection of combustible dusts in non-ATEX areas, and for other fine, abrasive or sticky dusts encountered on networks and production stations.

Characteristics / technical specifications

• Weight: 760 kg
• Dimensions: 95 x 180 x 220 h (cm)
• Maximum vacuum (peak): 5,000 mmH₂O (peak value indicated) and 4,400 mmH₂O continuous
• Max airflow: 1,100 m³/h
• Tank capacity: 220 L
• Noise level: 77 dB
• Total filter area (displayed): 120,000 cm² (summary figure); detailed filtration: 4 antistatic M-class cartridges – total cartridge surface 260,000 cm² + HEPA H14 filter 103,500 cm²
• Voltage: 400 V
• Power: 20,000 W (20 kW)
• ATEX zone: Non-zoned (designed for non-ATEX areas but compliant with ACD standard)
• Cleaning system: automatic by pneumatic cylinder with onboard compressor (PN version)
• Filtration performance: HEPA H14 capable of retaining particles down to 0.18 µm
• Pre-separation: tangential inlet with integrated cyclone
• Accessibility/maintenance: detachable tank on castors, forklift pockets
