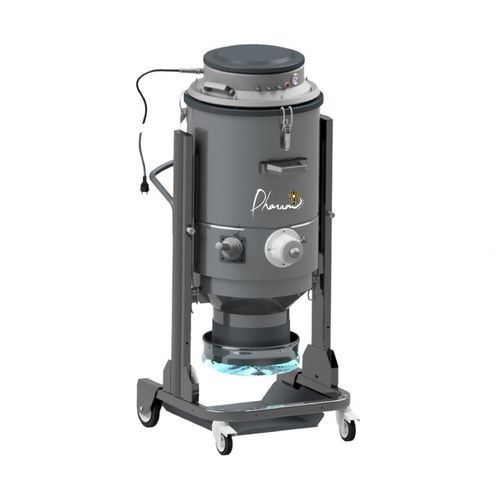

Industrial vacuum cleaner DM3EL ACD LP

drycombustible dustsingle-phase

Presentation
The DM3EL ACD LP is an industrial vacuum designed for safe handling of combustible dust in non-ATEX (ACD) areas. It combines high suction performance, safety features and autonomous operation through the Longopac bagging system, which enables continuous dust collection in sealed packaging without operator contact.

Use and applications
Suitable for demanding industrial environments: building, food processing, aerospace, construction. Specifically dedicated to combustible dust handling outside ATEX zones (ACD compliant).

Key advantages

• Compact and ergonomic for operators
• Compliant with current ACD regulation
• Very high suction power, suitable for heavy or fine residues
• Hygienic Longopac system: continuous collection without direct waste handling

Features and components

• By-pass high-performance motor 3.3 kW
• Longopac bagging system for continuous, safe collection
• Antistatic pocket filter (category M) combined with HEPA H14 absolute filter
• Manual filter deblinding via handle for consistent performance
• Integrated vacuum gauge for real-time filter status monitoring
• Reinforced industrial chassis and robust wheels for good mobility on site

Supplied accessories

• Antistatic cleaning accessory kit TA.1305.0000

Technical specifications

• Model: DM3EL ACD LP
• Type of suction: Combustible dust (non-ATEX - ACD)
• Motor / Electrical power: 3.3 kW (3300 W)
• Voltage: 230 V
• Maximum vacuum: 2,500 mmH2O
• Maximum airflow: 540 m³/h
• Capacity: Longopac (continuous Longopac bagging)
• Primary filter: Antistatic pocket filter (ANT M), primary filter area indicated as 30,000 cm²
• Absolute filtration: HEPA H14, area 26,000 cm², capture efficiency 99.995% for 0.18 μm particles
• Deblinding system: Manual (handle)
• Noise level: 74 dB
• Mechanical features: Reinforced industrial chassis, robust wheels, dimensions and mobility adapted to site environments
• Compliance / safety: Compliant with ACD regulation for combustible dust (Longopac version for increased safety outside ATEX zones)
