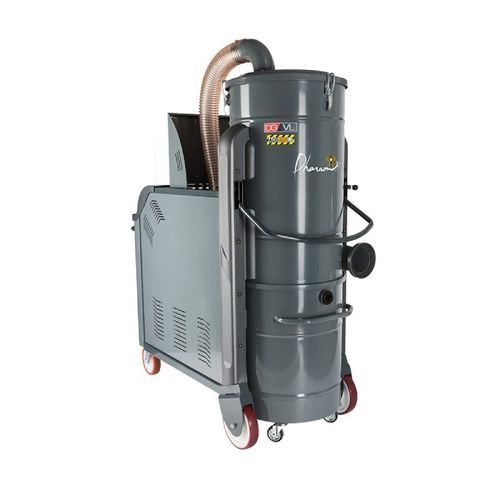

Industrial vacuum cleaner DGVL185 PN ACD

drydustcombustible dust

Summary
The DGVL185PN ACD is a high-power three-phase industrial vacuum designed for heavy-duty applications in non-ATEX areas for handling combustible dusts. Compliant with ACD regulation (IEC 60335-2-69), it provides an autonomous, safe and reliable solution for dust extraction in demanding industrial environments.

Key benefits

• ACD-compliant for combustible dust handling.
• Mobility features: industrial-grade wheels, handling handle and forklift pockets for easy transport.
• Reinforced construction with epoxy-painted steel chassis for continuous use.
• Large removable 160 L container compatible with disposable bagging systems for clean waste disposal.
• High air flow suitable for heavy process extraction.

Filtration

• Two-stage filtration block.
• 4 antistatic M-class filter cartridges (total surface area 106,000 cm²) providing effective capture of dry dusts.
• Absolute HEPA H14 filter 103,500 cm², particle retention 99.995% for fine particulate control.

Operation and maintenance

• Integrated pneumatic pulse-cleaning system (compressed-air shocks) for automatic cleaning and performance maintenance without machine shutdown.
• Illuminated evacometer to signal clogging or performance drop.
• 160 L removable drum on casters for easy emptying and evacuation.

Typical applications

• Processing plants
• Silos
• Woodworking shops
• Large-scale construction sites

Technical specifications

• Model: DGVL185PN ACD
• Motor: 18.5 kW
• Maximum vacuum: 4,000 mmH₂O
• Maximum air flow: 1,350 m³/h
• Container capacity: 160 L
• Filtration: 4 antistatic M-class cartridges, total cartridge surface 106,000 cm²
• Absolute filter: HEPA H14, 103,500 cm² (retention 99.995%)
• Cleaning system: pneumatic pulse cleaning, automatic maintenance
• Sound level: 82 dB
• Voltage: 400 V (three-phase)
• Air inlet: 120 mm
• Vacuum family: Industrial
• ATEX zone: Outside zone (non-ATEX)
• Weight (page specifications): 450 kg
• Weight (page metadata): 360 kg
