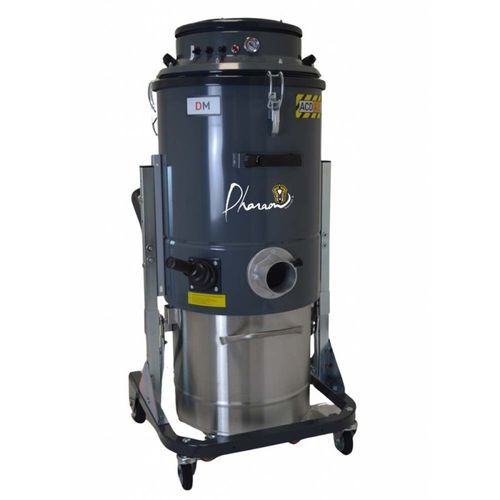

Industrial vacuum cleaner DM3EL ACD

drycombustible dustfine dust

Description
The DM3EL ACD is a single-phase industrial vacuum cleaner designed for workshops, construction sites and industrial environments. It is intended for the extraction of combustible dusts (e.g. wood, flour) outside ATEX-certified zones while ensuring operator safety.

Main functions

• Compliant with ACD regulation (Applied for Combustible Dust).
• Three single-phase bypass motors with modulated power (total power 3.3 kW).
• Maximum vacuum up to 2 500 mmH₂O and air flow up to 540 m³/h.
• Removable 60 L recovery tank in AISI 304 stainless steel, mounted on casters for easy emptying.
• Integrated manual filter-cleaning system via a handle to detach accumulated dust from the filter.

Filtration system
The filtration system includes an antistatic pocket primary filter of category M (ANT-M) capable of retaining dust and fine particles down to 1 µm, complemented by an absolute HEPA H14 filter (filtration up to 99.995% of particles down to 0.018 µm) ensuring clean air exhaust and enhanced operator protection.

Application and use
Designed for the extraction of combustible dusts in non-ATEX certified areas. Intended for industrial environments (workshops, construction sites, bakeries/pastry shops, carpentry, etc.) that require secure handling of combustible dust.

Accessories and compatible parts (examples shown on product page)

• Antistatic M class pocket filter (supplier reference indicated on the product page).
• HEPA H14 cartridge filter (supplier reference indicated on the product page).
• Tank gasket (supplier reference indicated on the product page).

Characteristics / technical specifications

• Model: DM3EL ACD
• Type of extraction: Combustible dusts
• Power: 3.3 kW (3 single-phase bypass motors, modulated power)
• Max vacuum: 2 500 mmH₂O
• Max air flow: 540 m³/h
• Tank capacity: 60 L (removable AISI 304 tank)
• Primary filter: ANT M (antistatic pocket filter class M)
• Absolute filtration: HEPA H14 (up to 99.995% of particles, 0.018 µm)
• Cleaning system: Manual (integrated handle)
• Noise level: 76 dB
• Voltage: 230 V
• Dimensions: 66 x 70 x 135 cm (L x W x H)
