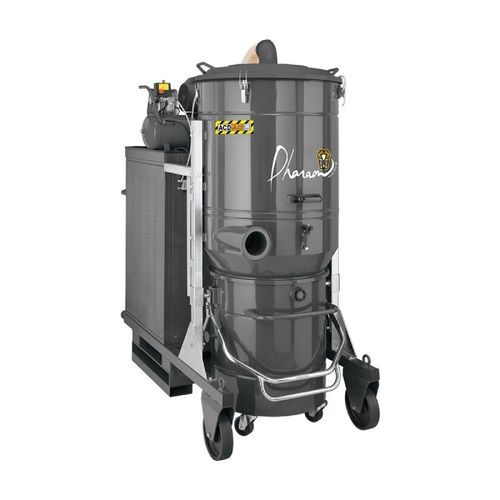

Industrial vacuum cleaner DG300 HD ACD

drycombustible dustfine dust

Presentation
The DG300 HD ACD is a three-phase, very high-capacity industrial vacuum designed for dust extraction in non-ATEX environments exposed to massive volumes of combustible or fine dust. Compliant with ACD regulation (IEC 60335-2-69), it is suitable for heavy industrial applications (steel mills, foundries, shipyards, recycling sites).

Functional characteristics

• Motor: 25 kW (side-channel blower, direct drive, no transmission) designed for continuous 24/7 operation.
• Maximum vacuum: 3 100 mmH2O.
• Maximum air flow: 2 050 m³/h.
• Filtration system: antistatic polyester bag Category M (filter area 120 000 cm²) + absolute HEPA H14 (103 500 cm²) ensuring 99.995% efficiency on particles down to 0.18 µm.
• Filter cleaning: automatic via timed pneumatic cylinder powered by onboard compressor.
• Clogging control: vacuum gauge with indicator light.
• Safety: ACD compliance for combustible dusts; safety valve protecting the motor against overpressure.
• Tangential air inlet with cyclonic effect to limit dust/filter contact and optimize waste separation.
• 220 L tank mounted on industrial wheels, detachable for rapid and clean emptying.

Design and uses
Industrial epoxy-painted steel structure, resistant to mechanical stress and wear. Designed for direct integration into production environments and for fixed installations or long-distance extraction networks. Particularly adapted to demanding industrial sites handling combustible or very fine dust.

Key advantages

• High flow, high power and high vacuum for heavy-duty applications.
• Integrated HEPA H14 filtration for hygiene and safety.
• Automatic filter cleaning for consistent performance in continuous operation.
• Robust design and limited maintenance due to the direct-drive motor without transmission.

Technical specifications

• Model: DG300 HD ACD
• Motor power: 25 kW
• Max vacuum: 3 100 mmH2O
• Max air flow: 2 050 m³/h
• Tank capacity: 220 L
• Filter area polyester bag (Cat. M): 120 000 cm²
• Filter area HEPA H14: 103 500 cm² (efficiency 99.995% down to 0.18 µm)
• Filter cleaning: timed pneumatic cylinder + onboard compressor
• Noise level: 78 dB
• Voltage: 400 V
• Air inlet: 120 mm
• Dimensions (H x W x D indicated): 95 x 180 x 220 h (as provided by manufacturer)
• Weight: 810 kg
• Materials: epoxy-painted steel structure
