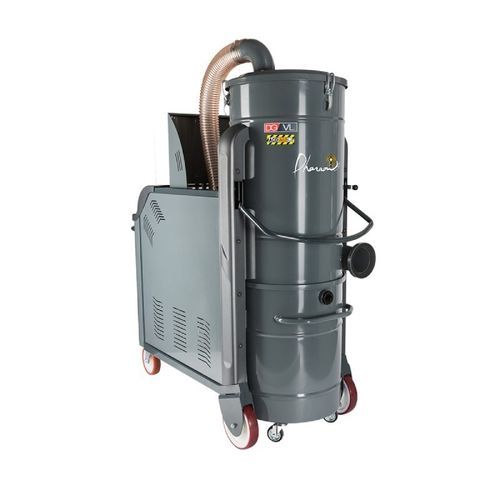

Industrial vacuum cleaner DGVL125 ACD

drycombustible dustfine dust

The DGVL125 ACD is a three-phase industrial vacuum cleaner specifically developed for handling combustible dusts outside ATEX zones, according to the strict requirements of the ACD standard (IEC 60335-2-69). This recent regulation imposes rigorous design criteria for machines operating in risk environments without ATEX classification, but where the dusts handled can still generate dangerous thermal effects if mismanaged. The DGVL125 ACD is thus a secure, compliant, and efficient solution, perfectly suited for sectors such as wood, construction, material processing, food industry, or any industry generating flammable or explosive dusts in controlled quantities. This model is equipped with a 12.5 kW motor, powered by three-phase 400 V – 50 Hz, with a side channel turbine designed for continuous 24/7 use, maintenance-free. It delivers a maximum vacuum of 4,000 mmH₂O (2,900 mmH₂O continuously) for an air flow rate of 1,100 m³/h, ensuring stable and effective suction, even for heavy or high-concentration residues. The motor is IP65 protected and features a safety valve, ensuring total reliability in volatile dust environments. The core of its safety lies in its dedicated ACD filtration system, combining an antistatic class M pocket filter (70,000 cm²) and a standard HEPA H14 absolute filter (103,500 cm²), capturing 99.995% of particles down to 0.18 microns. These two levels of filtration guarantee an effective barrier against the spread of fine dusts, while ensuring maximum protection for operators and the work environment. The tangential configuration with integrated cyclone separation directs dust to the bottom of the tank, reducing direct contact with the filter and limiting the risk of clogging or heating of the filter media. The semi-automatic filter cleaning system, controlled by an integrated compressor, ensures regular and effective filter cleaning without interrupting operation. A vacuum gauge with a light indicator signals the operator about the clogging level, allowing quick preventive actions to maintain suction performance and device safety. The 160-liter recovery tank, mounted on wheels and easily detachable, allows for simple and safe emptying, with the possibility of direct bagging into disposable bags, eliminating any contact with potentially hazardous materials. The chassis is reinforced with epoxy-painted steel, designed to withstand industrial constraints, equipped with robust industrial wheels, a push handle, and forklift slots, ensuring perfect mobility even in challenging environments. The DGVL125 ACD is more than just a vacuum cleaner: it is a certified solution designed for risk prevention related to combustible dusts, compliant with ACD regulations, and perfectly tailored for industries concerned with safety, durability, and operational efficiency. It is the essential equipment for any installation handling at-risk particles, without a formal ATEX zone but requiring rigorous control of flammable dusts. - Three-phase motor suitable for continuous use - Tangential air inlet with integrated cyclone - ACD regulation for combustible dusts - Robust structure painted in epoxy steel Technical Specifications: - Max vacuum (mmH₂O): 4000 - Max airflow (m3/h): 1100 - Capacity (Lt): 160 - Noise level (dB): 78 - Weight (kg): 430 - Vacuum family: Industrial - ATEX zone: Non-ATEX - Air inlet (mm): 120
