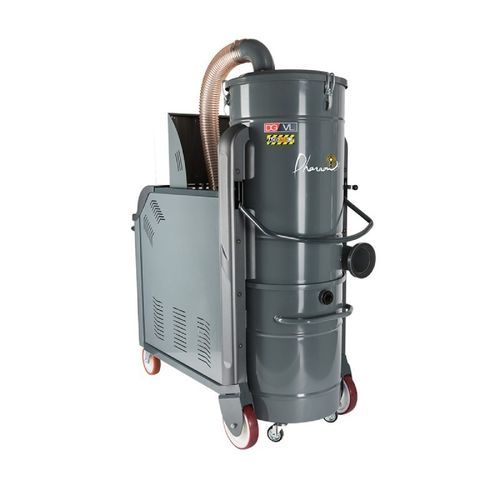

Industrial vacuum cleaner DGVL75 PN ACD

drycombustible dustfine dust

Summary
The DGVL75 PN ACD is a three-phase industrial vacuum designed for continuous extraction of combustible dusts, intended for demanding industrial environments (woodworking, construction, food processing, aerospace).

Description
Compliant with IEC 60335-2-69 ACD, this model is intended for non-ATEX areas where handling large volumes of flammable dusts is required without specific explosive certification. It features a maintenance-free side-channel blower motor suitable for continuous 24/7 operation. Rated power is 7.5 kW, providing high maximum vacuum and a large airflow to ensure stable collection of substantial residue volumes. The safety system includes a vacuum-limiting valve to protect the motor from overloads.

Filtration and pulse-cleaning
The filtration unit comprises 4 antistatic M-class cartridges (total filtration area: 106,000 cm²) combined with an absolute HEPA H14 filter (52,000 cm²) capable of retaining 99.995% of particles down to 0.18 μm. Integrated automatic cleaning is performed by pneumatic shock pulses (compressed air), ensuring regular cartridge cleaning and extending filter life. A vacuum gauge with indicator light alerts of clogging for rapid preventive maintenance.

Separation and container
Tangential inlet combined with an integrated cyclone provides primary dust separation, reducing particle contact with the cartridges and minimizing soiling. The 160 L container is mounted on wheels and detachable for quick emptying; a sealed-bagging option is available for secure waste transfer.

Frame and mobility
Epoxy-painted steel frame designed to withstand prolonged industrial conditions. Ergonomic and robust equipment: forklift pockets, ergonomic push handle, reinforced industrial wheels for optimal maneuverability, even on rough floors.

Benefits & applications

• Suitable for production lines.
• Integrated automatic compressed-air pulse cleaning.
• Three-phase motor and maintenance-free side-channel blower for continuous 24/7 use.
• Enhanced safety for handling hazardous fine dusts (dual filtration: M cartridges + HEPA H14).
• Easy mobility (wheels, forklift pockets) and rapid container emptying.

Technical specifications

• Commercial designation: DGVL75 PN ACD
• Motor power: 7.5 kW
• Motor type: maintenance-free side-channel blower, suitable for continuous 24/7 operation
• Maximum vacuum: 4,500 mmH2O
• Maximum airflow: 750 m³/h
• Container capacity: 160 L
• Filtration system: 4 antistatic M-class cartridges (total area 106,000 cm²) + absolute HEPA H14 filter (52,000 cm²)
• HEPA H14 efficiency: captures 99.995% of particles down to 0.18 μm
• Cleaning system: integrated automatic compressed-air pulse cleaning
• Indicator: vacuum gauge with indicator light (clogging alert)
• Primary separation: tangential inlet + integrated cyclone
• Emptying: detachable wheeled container, sealed-bagging option
• Frame: epoxy-painted steel
• Mobility: forklift pockets, ergonomic handle, reinforced industrial wheels
• Noise level: 72 dB
• Weight: 360 kg
• Air inlet: 120 mm
• Vacuum family: Industrial
• ATEX zone: non-ATEX (designed for non-ATEX areas)
