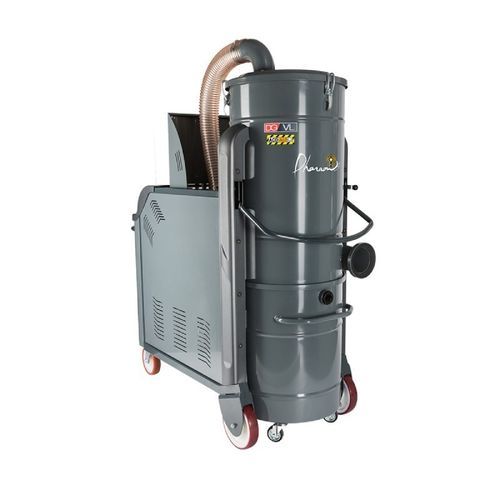

Industrial drum vac DGVL150 SE PN ACD

drydustcombustible dust

Overview
The DGVL150 SE PN ACD is a high-power three-phase industrial vacuum cleaner designed for handling combustible dusts. Compliant with IEC 60335-2-69, it is intended for non-ATEX environments requiring high suction performance and enhanced safety features.

Key points

• Power: 15 kW three-phase motor
• Max suction (depression): 6 000 mmH₂O
• Airflow: 720 m³/h
• Tank: 160 L on castors, equipped for easy emptying (forklift pockets)
• Filtration: four antistatic M-class cartridge filters + HEPA H14 final filter (retention up to 99.995%)
• Cleaning system: pneumatic automatic pulse-jet de-clogging
• Visual vacuum gauge with warning light for filter clogging
• Construction: epoxy-painted steel frame, integrated handles, industrial wheels
• Air inlet: 120 mm
• Compliant with ACD regulation

Features and benefits

• Very high suction (6 000 mmH₂O) suitable for heavy, dense or sticky materials.
• Multi-stage filtration with antistatic cartridges and HEPA H14 for operator protection and optimal air quality.
• Automatic de-clogging maintains constant performance without manual intervention.
• Industrial ergonomics: robust construction, mobility (industrial wheels), easy handling and emptying.
• Designed for continuous operation on production lines, silos, workshops or dusty sites.

Typical applications

• Industrial production lines (food, aerospace, metallurgy, etc.)
• Silos and material handling areas with combustible dust
• Processing workshops and construction sites generating fine or hazardous dusts (non-ATEX zones)

Technical specifications

• Commercial model: DGVL150 SE PN ACD
• Standards: IEC 60335-2-69
• Motor power: 15 kW (three-phase)
• Maximum suction (depression): 6 000 mmH₂O
• Maximum airflow: 720 m³/h
• Tank capacity: 160 L
• Primary filtration: 4 antistatic M-class cartridges
• Final filter: HEPA H14 (efficiency up to 99.995%)
• Cleaning system: pneumatic automatic pulse-jet de-clogging
• Indicator: visual vacuum gauge with clogging alert light
• Air inlet: 120 mm
• Declared sound level: 78 dB
• ATEX zone: Outside ATEX
• Vacuum cleaner family: Industrial
• Structure: epoxy-painted steel, integrated handles, industrial-grade wheels, tank on castors, forklift pockets
• Designed for continuous operation
• Weight: 440 kg (value shown on product sheet); meta page indicates 360 kg (technical header note)
