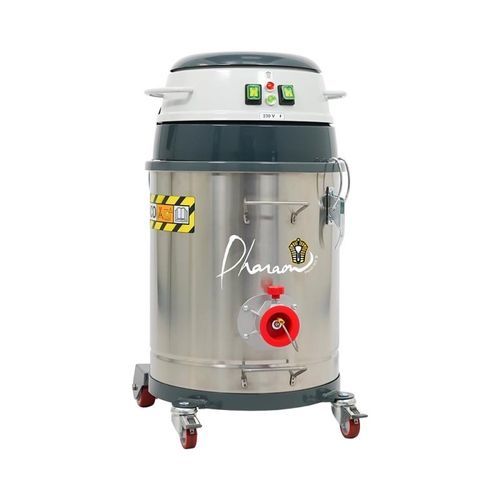

Industrial vacuum cleaner MTL302ACD

drycombustible dustsingle-phase

Description
The MTL302ACD is the most compact vacuum in the ACD range, designed for the collection of combustible dusts (flour, wood, etc.) in non-ATEX areas. It is supplied complete with a cleaning accessory kit.

Main advantages

• Designed for industrial use
• Compact and mobile
• Stainless steel (AISI 304) collection tank
• Suitable for extraction of combustible dusts

More information
Single-phase unit operating at 230 V. The MTL302ACD delivers 2.2 kW via two efficient bypass motors. Despite its very compact footprint, it collects up to 40 litres of dust in an AISI 304 stainless steel tank.

Filtration

• Antistatic M-class filtration for fine dust down to 1 micron
• Absolute HEPA H14 filtration for particles down to 0.18 microns

Mobility and handling
Equipped with four multidirectional wheels and a push handle for easy positioning and transport.

Regulation
Compliant with ACD requirements (introduced by IEC 60335-2-69, 2021) aimed at increasing safety for the collection of combustible or toxic dusts in small quantities within non-ATEX areas.

Accessories supplied

• Cleaning accessory kit TA.0527.0000 (reference TA.0527.0000)

Characteristics / technical specifications

• Max depression (mmH²O): 2500
• Max airflow (m3/h): 360
• Capacity (Lt): 40
• Sound level (dB): 74
• Filter surface (cm²): 4000
• Voltage (Volts): 230
• Power (W): 2200
• Primary filter: ANT M
• Absolute filtration HEPA H14: Standard
• Type of suction: Combustible dusts
• Vacuum family: Industrial
