SMD DC/DC converter AT, DT, SAT, SDT series
DIPplug-instep-down

SMD DC/DC converter
SMD DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
SMD, DIP, plug-in
Electrical characteristics
step-down, unregulated
Other characteristics
insulated, compact, ultra-miniature
Input voltage

3 V, 5 V, 9 V, 12 V

Output voltage

Min.: 3.3 V

Max.: 15 V

Power

0.65 W, 0.75 W

Description

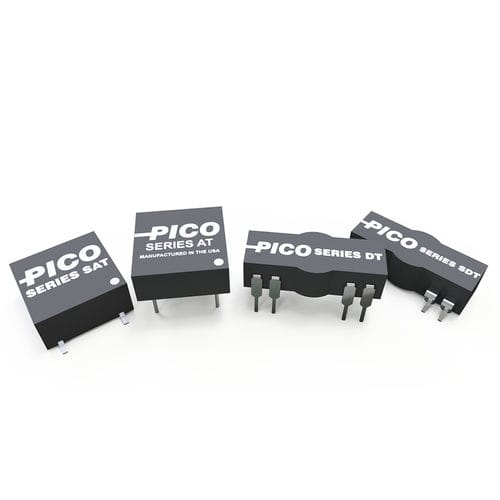

This series of unregulated DC-DC converters offer you a 0.200" tall package. 96 different models are available and all offer very low current consumption to operate in battery driven circuits. Isolated, single and dual outputs will operate from -25º C to +70º C with no heat sink or derating required. Built-in output capacitors and 4 convenient input voltages also help in simplifying your design, and with the addition of our new DIP package, board layout and assembly is simplified. OPTIONS AVAILABLE Per Mil. Std. 883 Expanded operating temp. (-55º C to +85º C) Stabilization Bake (125º C ambient) Temperature Cycle (-55º C to +125º C) Hi Temp, full power burn in (100% power, 125º C case temp) FEATURES New DIP package available Low current consumption No external components required Encapsulated semiconductors, conservatively rated for maximum reliability Single and dual output 100 megohm at 500V DC No heat sink required 0.2" Height Low Profile No External Components Required Low No Load Current for Battery Applications New DIP Package At Low Profile .5" x .5" x .2" ht. ...up to 0.75 Watts No Heat Sink or Electrical Derating Required Test conditions: 25º C ambient and input voltage at nominal value unless otherwise specified. LINE REGULATION: OUTPUT VOLTAGE IS DIRECTLY PROPORTIONAL TO THE INPUT VOLTAGE. Converter frequency: 40 to 60 KHz Output terperature coefficient: 0.05%/ºC all models Operating temperature: -25º C to +70º C ambient. No heat sink or derating required. Storage temperature: -55º C to +125º C Isolation: 100 megohms min. @ 500V DC
